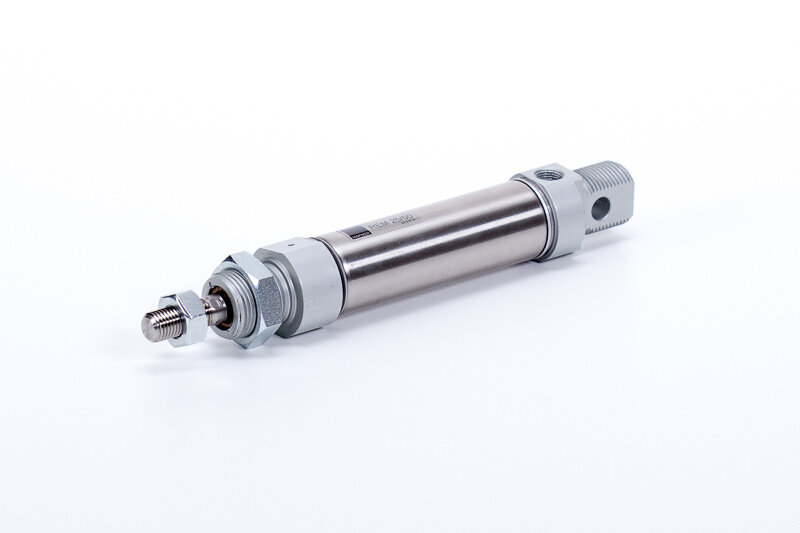

Round cylinder - ISO 6432 - single acting - magnetic piston

You can add comments on the request summary page.

REM 25/25

Round cylinder - ISO 6432 - single acting - magnetic piston

Please register here to access downloads for data sheets and 3D models.

Product number	Diameter	Material seals	Piston rod diameter	Piston rod thread	Port size / Connection	Stroke
REM 8/10	Ø8	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	10 mm
REM 8/25	Ø8	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	25 mm
REM 8/50	Ø8	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	50 mm
REM 10/10	Ø10	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	10 mm
REM 10/25	Ø10	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	25 mm
REM 10/50	Ø10	NBR, PU (max. 80°C)	Ø4 mm	M4 - male thread	M5	50 mm
REM 12/10	Ø12	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	10 mm
REM 12/25	Ø12	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	25 mm
REM 12/50	Ø12	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	50 mm
REM 16/10	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	10 mm
REM 16/25	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	25 mm
REM 16/50	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	50 mm
REM 20/10	Ø20	NBR, PU (max. 80°C)	Ø8 mm	M8 - male thread	G 1/8"	10 mm
REM 20/25	Ø20	NBR, PU (max. 80°C)	Ø8 mm	M8 - male thread	G 1/8"	25 mm
REM 20/50	Ø20	NBR, PU (max. 80°C)	Ø8 mm	M8 - male thread	G 1/8"	50 mm
REM 25/10	Ø25	NBR, PU (max. 80°C)	Ø10 mm	M10 x 1,25 - male thread	G 1/8"	10 mm
REM 25/50	Ø25	NBR, PU (max. 80°C)	Ø10 mm	M10 x 1,25 - male thread	G 1/8"	50 mm

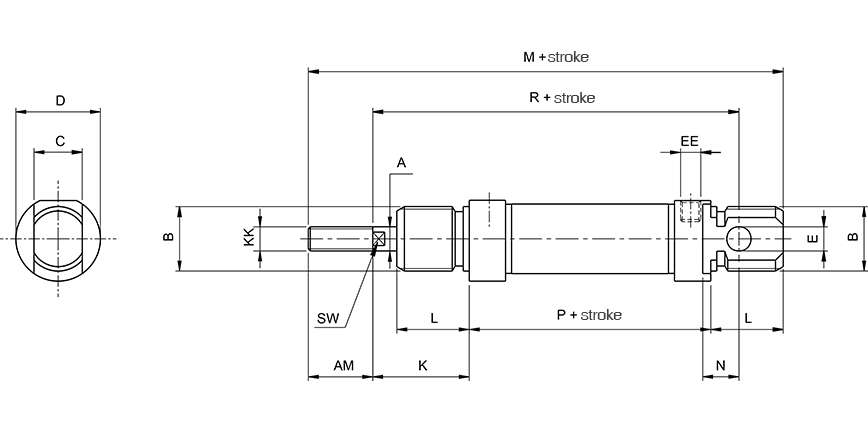

Type number	Ø [mm]	A	B	C	D	E	K	L	M	N	P	R	AM	EE	KK	SW
REM 8/...	Ø 8	4	M 12 x 1,25	8	16	4	16	12	86	6	46	64	12	M 5	M 4	-
REM 10/...	Ø 10	4	M 12 x 1,25	8	16	4	16	12	86	6	46	64	12	M 5	M 4	-
REM 12/...	Ø 12	6	M 16 x 1,5	12	19	6	22	18	104	9	48	75	16	M 5	M 6	5
REM 16/...	Ø 16	6	M 16 x 1,5	12	19	6	22	18	109	9	53	82	16	M 5	M 6	5
REM 20/...	Ø 20	8	M 22 x 1,5	16	27	8	24	20	131	12	67	95	20	G 1/8"	M 8	7
REM 25/...	Ø 25	10	M 22 x 1,5	16	30	8	28	22	140	12	68	104	22	G 1/8"	M 10 x 1,25	9

Cushioning:	Built-in cushioning rings
Diameter:	Ø25
ISO standard:	ISO 6432
Material body:	Stainless steel
Material guide bushing:	Sintered bronze
Material heads:	Anodized aluminum
Material piston:	Brass
Material piston rod:	Stainless steel (AISI 304)
Material seals:	NBR, PU (max. 80°C)
Medium:	Compressed air
Operating pressure:	1…10 bar
Piston rod diameter:	Ø10 mm
Piston rod position:	Spring pushes piston rod in without pressure
Piston rod thread:	M10 x 1,25 - male thread
Piston type:	Magnetic
Port size / Connection:	G 1/8"
Stroke:	25 mm
Temperature range:	-20°C…+80°C
Thrust force (6 bar):	280 N
Ways:	Single acting
