565M-9

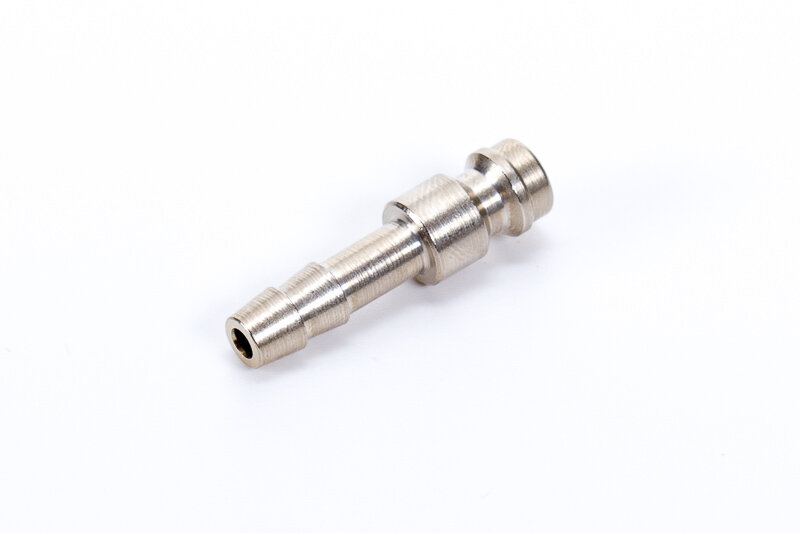

Quick coupling plug - barbed hose connection - DN 5 mm -Mignon profile
You can add comments on the request summary page.
565M-9
Quick coupling plug - barbed hose connection - DN 5 mm -Mignon profile
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

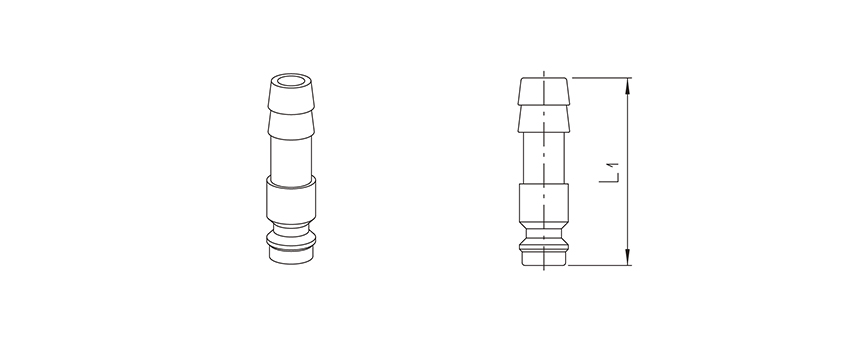

| Type number | DN | Tube size | L1 |
|---|---|---|---|
| 565M-6 | 5 | 4...5 | 33,5 |
| 565M-9 | 5 | 7...8 | 33,5 |
| Kivitel: | tömlővéges |
|---|---|
| Material: | Nickel-plated brass |
| Material seals: | Without seal |
| Medium: | Compressed air |
| Operating pressure: | 0…16 bar |
| Temperature range: | -20°C…+80°C |
| Tube size: | 7…8 mm |
