A-13500-10-1/2

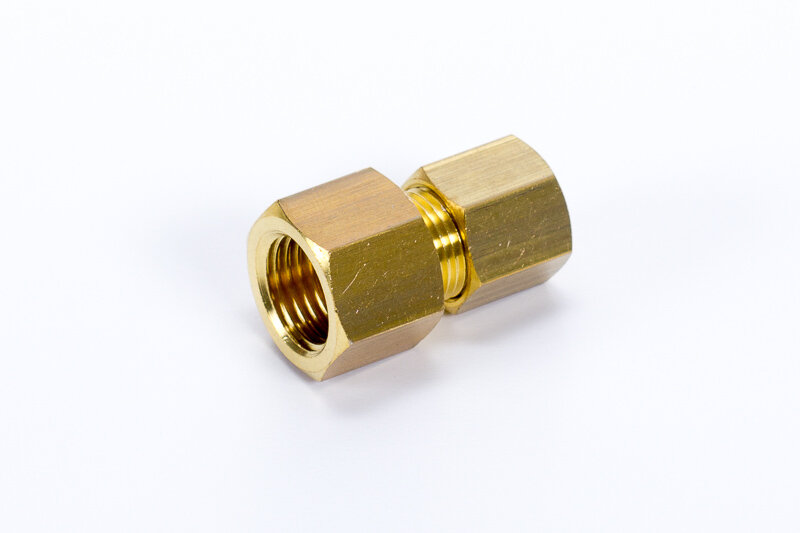

Compression fitting - female thread
You can add comments on the request summary page.
A-13500-10-1/2
Compression fitting - female thread
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

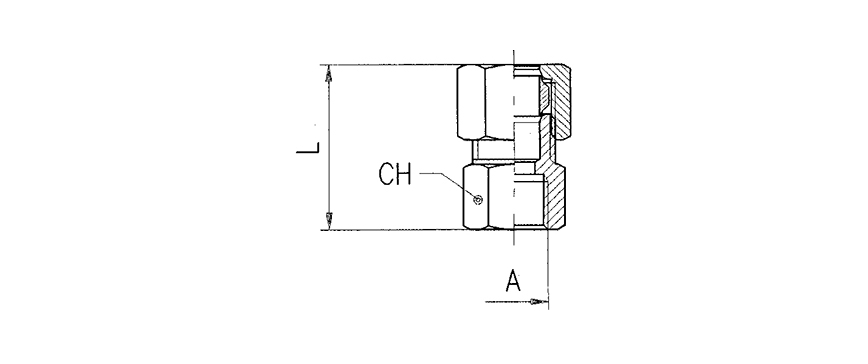

| Type number | Tube size | Port size A | L | CH |
|---|---|---|---|---|
| A-13500-4-1/8 | 4 | G 1/8" | 25 | 14 |
| A-13500-4-1/4 | 4 | G 1/4" | 27,5 | 17 |
| A-13500-6-1/8 | 6 | G 1/8" | 26 | 14 |
| A-13500-6-1/4 | 6 | G 1/4" | 28,5 | 17 |
| A-13500-8-1/8 | 8 | G 1/8" | 28 | 14 |
| A-13500-8-1/4 | 8 | G 1/4" | 30,5 | 17 |
| A-13500-8-3/8 | 8 | G 3/8" | 31,5 | 20 |
| A-13500-10-1/4 | 10 | G 1/4" | 33 | 17 |
| A-13500-10-3/8 | 10 | G 3/8" | 33,5 | 20 |
| A-13500-10-1/2 | 10 | G 1/2" | 35,5 | 24 |
| A-13500-12-1/4 | 12 | G 1/4" | 34 | 18 |
| A-13500-12-3/8 | 12 | G 3/8" | 34,5 | 20 |
| A-13500-12-1/2 | 12 | G 1/2" | 34 | 24 |
| A-13500-14-3/8 | 14 | G 3/8" | 36,5 | 20 |
| A-13500-14-1/2 | 14 | G 1/2" | 34 | 24 |
| A-13500-15-1/2 | 15 | G 1/2" | 36,5 | 24 |
| A-13500-16-1/2 | 16 | G 1/2" | 39 | 24 |
| A-13500-16-3/4 | 16 | G 3/4" | 40,5 | 30 |
| A-13500-18-1/2 | 18 | G 1/2" | 40 | 24 |
| A-13500-18-3/4 | 18 | G 3/4" | 41,5 | 30 |
| A-13500-22-3/4 | 22 | G 3/4" | 41,5 | 30 |
| Kivitel: | menetes |
|---|---|
| Material seals: | Without seal |
