A-57700-4-D6
Reducer for push-in fittings - entirely metal
You can add comments on the request summary page.
A-57700-4-D6
Reducer for push-in fittings - entirely metal
Please register here to access downloads for data sheets and 3D models.
| Product number | Port size / Connection | Port size | Push-in connection | Options |
|---|

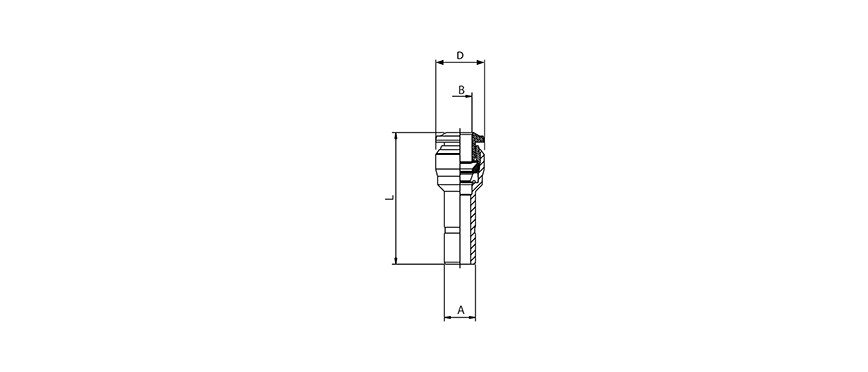

| Type number | Tube size | Port size A | L | D |
|---|---|---|---|---|
| A-57700-4-D5 | 4 | 5 | 29 | 12,5 |
| A-57700-4-D6 | 4 | 6 | 30 | 12,5 |
| A-57700-5-D6 | 5 | 6 | 32 | 12,5 |
| A-57700-4-D8 | 4 | 8 | 33 | 14 |
| A-57700-6-D8 | 6 | 8 | 34 | 14 |
| A-57700-4-D10 | 4 | 10 | 32 | 17 |
| A-57700-8-D10 | 8 | 10 | 38 | 17 |
| A-57700-8-D12 | 8 | 12 | 39 | 21,5 |
| A-57700-10-D12 | 10 | 12 | 43 | 17,5 |
| Clamping claw material: | Stainless steel |
|---|---|
| Description: | Reducer (only Push-In) |
| Material: | Nickel-plated brass |
| Material body: | Nickel-plated brass |
| Material release ring: | Technopolymer |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | Technopolymer |
| Medium: | Compressed air, vacuum, water,steam |
| Operating pressure: | -0,9…20 bar |
| Port size: | Ø4 |
| Port size / Connection: | D6 |
| Port size | Push-in connection: | Ø4 |
| Pressure range: | -0,9…20 bar |
| Temperature range: | -20°C…+80°C |
