A-58000-6-M6X0,75

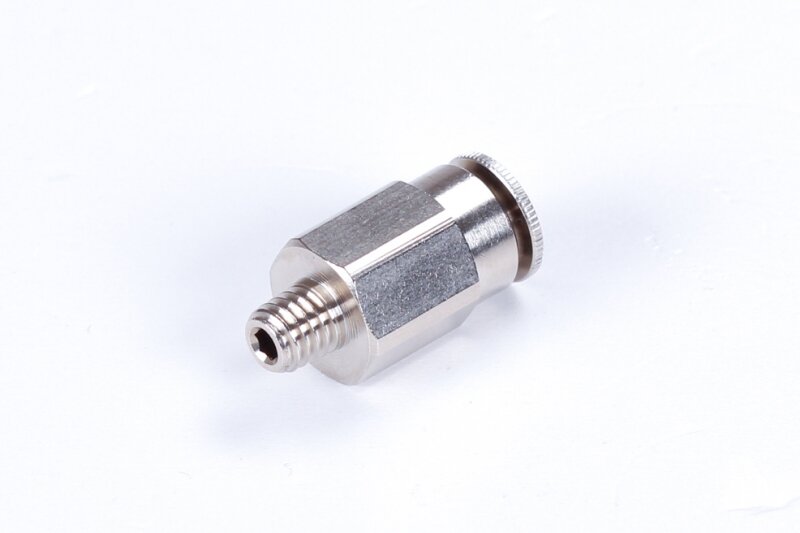

Straight push-in fitting - entirely metal - high pressure series
You can add comments on the request summary page.
A-58000-6-M6X0,75
Straight push-in fitting - entirely metal - high pressure series
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

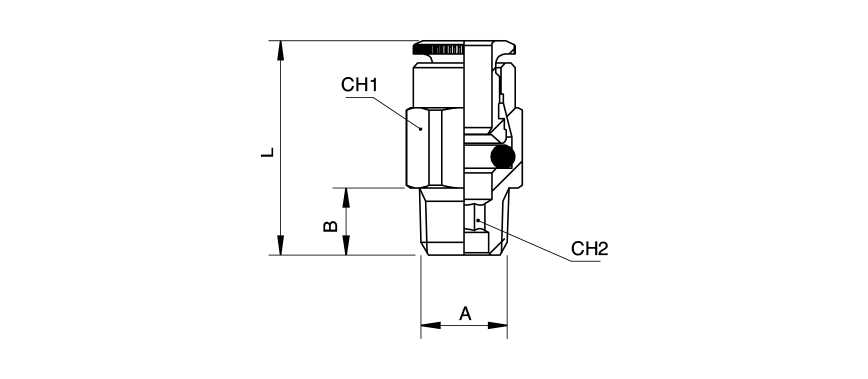

| Type number | Tube size | Port size A | B | L | CH1 | CH2 |
|---|---|---|---|---|---|---|
| A-58000-4-M6x0,75 | Ø4 | M 6 x 0,75 | 6 | 22 | 10 | 2,5 |
| A-58000-4-M6x1 | Ø4 | M 6 x 1 | 6 | 22 | 10 | 2,5 |
| A-58000-4-M8x1 | Ø4 | M 8 x 1 | 6 | 20 | 10 | 3 |
| A-58000-4-M10x1 | Ø4 | M 10 x 1 | 6,5 | 20 | 10 | 3 |
| A-58000-6-M6x0,75 | Ø6 | M 6 x 0,75 | 6 | 24,5 | 12 | 2,5 |
| A-58000-6-M6x1 | Ø6 | M 6 x 1 | 6 | 24,5 | 12 | 2,5 |
| A-58000-6-M8x1 | Ø6 | M 8 x 1 | 6 | 24,5 | 12 | 3 |
| A-58000-6-M10x1 | Ø6 | M 10 x 1 | 6,5 | 21,5 | 12 | 3 |
