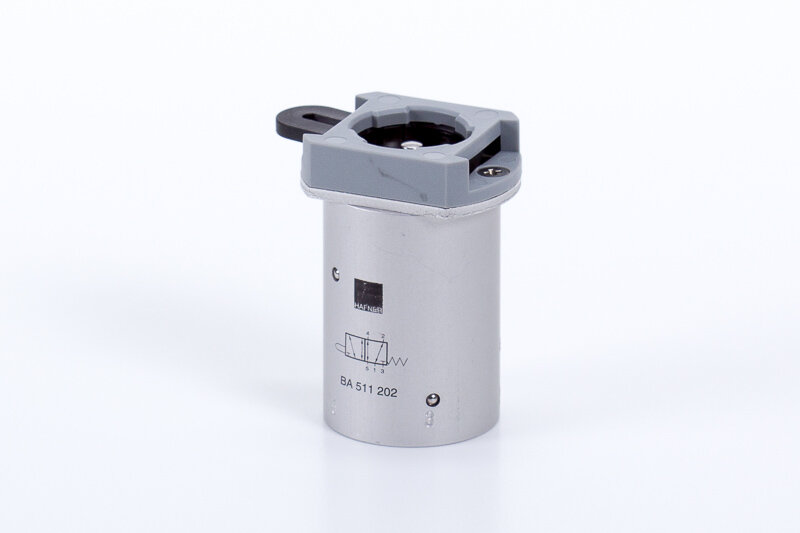

BA 511 202
5/2-way valve for panel mounting - M5 - mechanical spring return - port 1 and 2 on the bottom
You can add comments on the request summary page.
BA 511 202
5/2-way valve for panel mounting - M5 - mechanical spring return - port 1 and 2 on the bottom
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Actuating force: | 14 N |
|---|---|
| Actuation: | Manually actuated |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 125 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 0…10 bar |
| Port orientation: | On the bottom for manifold assembly |
| Port size / Connection: | M5 |
| Positional stability: | Monostable |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/2-ways |
