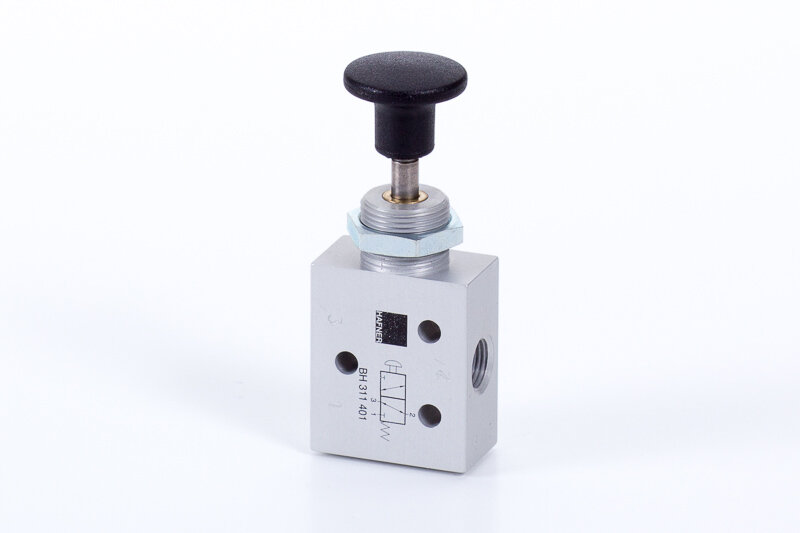

BH 311 401
3/2-way push-pull valve for panel mounting - G 1/8" - NC/NO - mechanical spring return
You can add comments on the request summary page.
BH 311 401
3/2-way push-pull valve for panel mounting - G 1/8" - NC/NO - mechanical spring return
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Actuating force: | 11 N |
|---|---|
| Actuation: | Manually actuated |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 450 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 1…10 bar |
| Port orientation: | On two sides |
| Port size / Connection: | G 1/8" |
| Positional stability: | Monostable |
| Temperature range: | -10°C…+50°C |
| Ways: | 3/2-ways |
