DCS 125
Pin for hinge - ISO 15552 - for hinges type DGS and DKL
You can add comments on the request summary page.
DCS 125
Pin for hinge - ISO 15552 - for hinges type DGS and DKL
Please register here to access downloads for data sheets and 3D models.
| Product number | Diameter | Options |
|---|

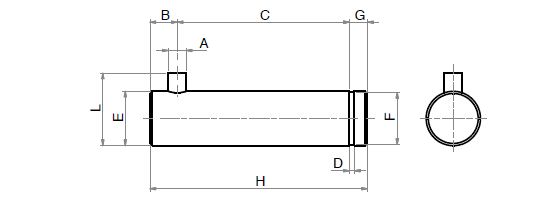

| Type number | Diameter | A | B | C | D | E | F | G | H | L |
|---|---|---|---|---|---|---|---|---|---|---|
| DCS 32 | Ø 32 | 3 | 4,5 | 32,5 | 1,1 | 10 | 9,6 | 4 | 41 | 14 |
| DCS 40 | Ø 40 | 4 | 6 | 38 | 1,1 | 12 | 11,5 | 4 | 48 | 16 |
| DCS 50 | Ø 50 | 4 | 6 | 43 | 1,1 | 16 | 15,2 | 5 | 54 | 20 |
| DCS 63 | Ø 63 | 4 | 6 | 49 | 1,1 | 16 | 15,2 | 5 | 60 | 20 |
| DCS 80 | Ø 80 | 4 | 6 | 63 | 1,3 | 20 | 19 | 6 | 75 | 24 |
| DCS 100 | Ø 100 | 4 | 6 | 73 | 1,3 | 20 | 19 | 6 | 85 | 24 |
| DCS 125 | Ø 125 | 6 | 9 | 94 | 1,6 | 30 | 28,6 | 7 | 110 | 36 |
| Diameter: | Ø125 |
|---|---|
| Material: | Steel |
