DG 32
Female clevis bracket for ISO 15552 cylinder
You can add comments on the request summary page.
DG 32
Female clevis bracket for ISO 15552 cylinder
Please register here to access downloads for data sheets and 3D models.
| Product number | Diameter | Options |
|---|

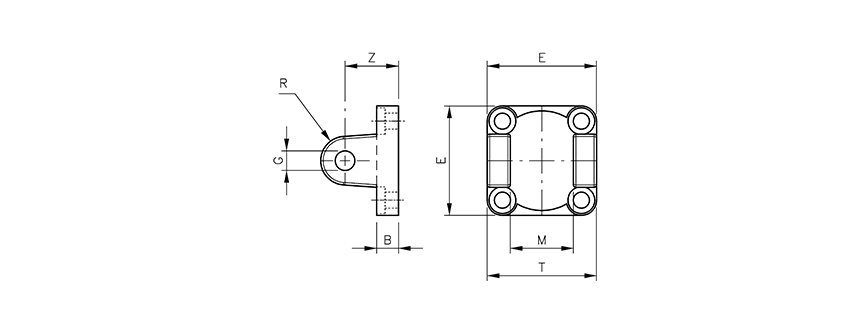

| Type number | Diameter | B | E | G | M | R | T | Z |
|---|---|---|---|---|---|---|---|---|
| DG 32 | Ø 32 | 9 | 45 | 10 | 26 | 10 | 45 | 22 |
| DG 40 | Ø 40 | 9 | 52 | 12 | 28 | 12 | 52 | 25 |
| DG 50 | Ø 50 | 11 | 65 | 12 | 32 | 12 | 60 | 27 |
| DG 63 | Ø 63 | 11 | 75 | 16 | 40 | 16 | 70 | 32 |
| DG 80 | Ø 80 | 14 | 95 | 16 | 50 | 16 | 90 | 36 |
| DG 100 | Ø 100 | 14 | 115 | 20 | 60 | 20 | 110 | 41 |
| DG 125 | Ø 125 | 20 | 140 | 25 | 70 | 25 | 130 | 50 |
| Diameter: | Ø32 |
|---|---|
| Material: | Steel |
