DGS 40

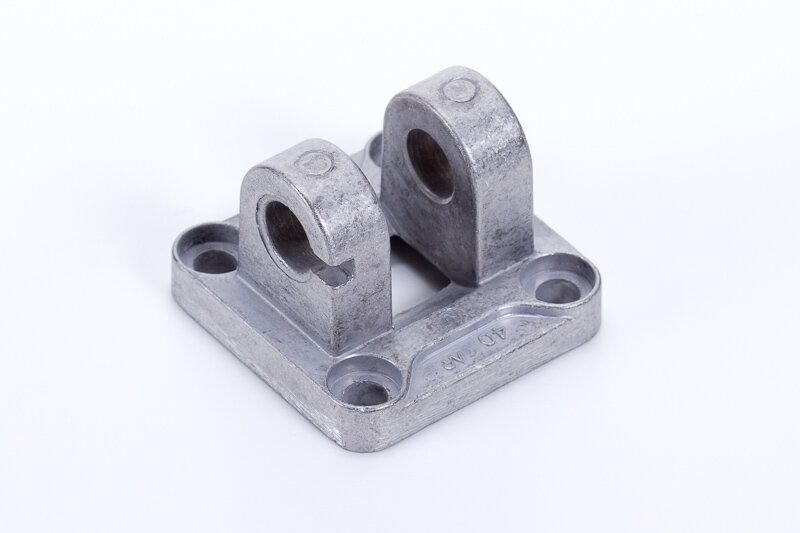

Female clevis bracket for flange with spherical bearing - ISO 15552 - for male hinge type DKL
You can add comments on the request summary page.
DGS 40
Female clevis bracket for flange with spherical bearing - ISO 15552 - for male hinge type DKL
Please register here to access downloads for data sheets and 3D models.
| Product number | Diameter | Options |
|---|

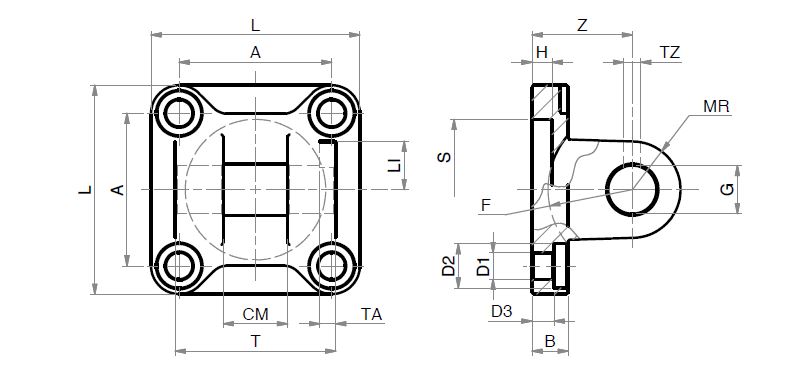

| Type number | Diameter | A | B | CM | D1 | D2 | D3 | F min. | G | H | LI | L | MR | S | TA | TZ | T | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DGS 32 | Ø 32 | 32,5 | 9 | 14 | 6,6 | 11 | 5,5 | 17 | 10 | 5 | 11,5 | 45 | 10 | 30 | 3 | 3,3 | 34 | 22 |
| DGS 40 | Ø 40 | 38 | 9 | 16 | 6,6 | 11 | 5,5 | 20 | 12 | 5 | 12 | 52 | 12 | 35 | 4 | 4,3 | 40 | 25 |
| DGS 50 | Ø 50 | 46,5 | 11 | 21 | 9 | 15 | 6,5 | 22 | 16 | 5 | 14 | 65 | 14 | 40 | 4 | 4,3 | 45 | 27 |
| DGS 63 | Ø 63 | 56,5 | 11 | 21 | 9 | 15 | 6,5 | 25 | 16 | 5 | 14 | 75 | 18 | 45 | 4 | 4,3 | 51 | 32 |
| DGS 80 | Ø 80 | 72 | 14 | 25 | 11 | 18 | 10 | 30 | 20 | 5 | 16 | 95 | 20 | 45 | 4 | 4,3 | 65 | 36 |
| DGS 100 | Ø 100 | 89 | 14 | 25 | 11 | 18 | 10 | 32 | 20 | 5 | 16 | 115 | 22 | 55 | 4 | 6,3 | 75 | 41 |
| DGS 125 | Ø 125 | 110 | 20 | 37 | 14 | 20 | 10 | 42 | 30 | 7 | 24 | 140 | 25 | 60 | 6 | 6,3 | 97 | 50 |
| Diameter: | Ø40 |
|---|---|
| Material: | Aluminum |
