Profile cylinder D-series - ISO 15552 - double acting - adjustable cushioning - magnetic piston - with guide rod

You can add comments on the request summary page.

DIFD 32/80
Profile cylinder D-series - ISO 15552 - double acting - adjustable cushioning - magnetic piston - with guide rod
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod thread Port size / Connection Stroke Options
DIFD 32/25 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 25 mm
DIFD 32/50 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 50 mm
DIFD 32/100 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 100 mm
DIFD 32/125 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 125 mm
DIFD 32/160 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 160 mm
DIFD 32/200 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 200 mm
DIFD 32/250 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 250 mm
DIFD 32/320 Ø32 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/8" 320 mm
DIFD 40/25 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 25 mm
DIFD 40/50 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 50 mm
DIFD 40/80 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 80 mm
DIFD 40/100 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 100 mm
DIFD 40/125 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 125 mm
DIFD 40/160 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 160 mm
DIFD 40/200 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 200 mm
DIFD 40/250 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 250 mm
DIFD 40/320 Ø40 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 320 mm
DIFD 50/25 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 25 mm
DIFD 50/50 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 50 mm
DIFD 50/80 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 80 mm
DIFD 50/100 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 100 mm
DIFD 50/125 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 125 mm
DIFD 50/160 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 160 mm
DIFD 50/200 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 200 mm
DIFD 50/250 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 250 mm
DIFD 50/320 Ø50 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/4" 320 mm
DIFD 63/25 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 25 mm
DIFD 63/50 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 50 mm
DIFD 63/80 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 80 mm
DIFD 63/100 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 100 mm
DIFD 63/125 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 125 mm
DIFD 63/160 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 160 mm
DIFD 63/200 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 200 mm
DIFD 63/250 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 250 mm
DIFD 63/320 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 320 mm
DIFD 63/400 Ø63 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 400 mm
DIFD 80/25 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 25 mm
DIFD 80/50 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 50 mm
DIFD 80/80 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 80 mm
DIFD 80/100 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 100 mm
DIFD 80/125 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 125 mm
DIFD 80/160 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 160 mm
DIFD 80/200 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 200 mm
DIFD 80/250 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 250 mm
DIFD 80/320 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 320 mm
DIFD 80/400 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 400 mm
DIFD 80/500 Ø80 NBR, PU (max. 80°C) With guide rod, anti-rotation G 3/8" 500 mm
DIFD 100/25 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 25 mm
DIFD 100/50 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 50 mm
DIFD 100/80 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 80 mm
DIFD 100/100 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 100 mm
DIFD 100/125 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 125 mm
DIFD 100/160 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 160 mm
DIFD 100/200 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 200 mm
DIFD 100/250 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 250 mm
DIFD 100/320 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 320 mm
DIFD 100/400 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 400 mm
DIFD 100/500 Ø100 NBR, PU (max. 80°C) With guide rod, anti-rotation G 1/2" 500 mm

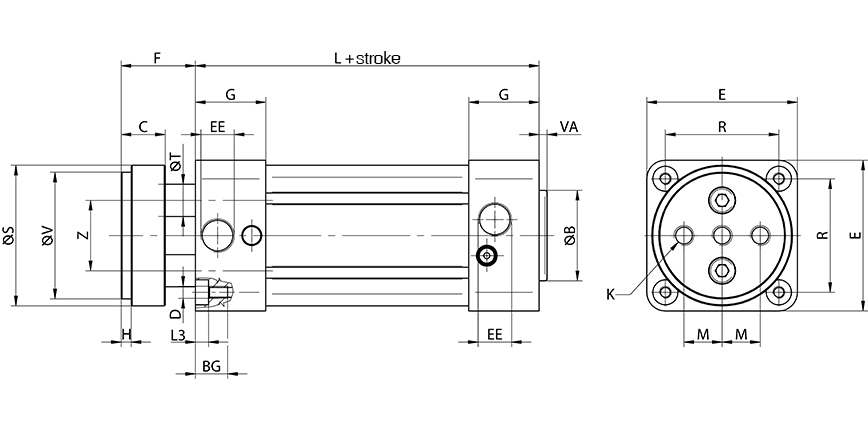

Type number Ø [mm] B F E H C K M S T V Z VA L BG D R EE L3
DIFD 32/... Ø 32 Ø 30 26 47 4 15 M 6 9,5 Ø 35 Ø 8 Ø 32 18 4 94 16 M 6 32,5 G 1/8" 5
DIFD 40/... Ø 40 Ø 35 30 53 4 15 M 8 11,25 Ø 45 Ø 10 Ø 40 22 4 105 16 M 6 38 G 1/4" 5
DIFD 50/... Ø 50 Ø 40 37 65 5 18 M 8 15 Ø 55 Ø 12 Ø 50 26 4 106 16 M 8 46,5 G 1/4" 5
DIFD 63/... Ø 63 Ø 45 37 75 5 22 M 10 19 Ø 70 Ø 16 Ø 63 35 4 121 16 M 8 56,5 G 3/8" 5
DIFD 80/... Ø 80 Ø 45 46 95 5 22 M 12 25 Ø 85 Ø 20 Ø 80 40 4 128 17 M 10 72 G 3/8" 6,5
DIFD 100/... Ø 100 Ø 55 51 115 5 22 M 12 35 Ø 105 Ø 20 Ø 100 50 4 138 17 M 10 89 G 1/2" 6,5
Cushioning: Adjustable cushioning
Diameter: Ø32
ISO standard: ISO 15552
Material body: Anodized aluminum
Material guide bushing: Sintered bronze
Material heads: Die-cast aluminum
Material piston: Aluminum
Material piston rod: Chromed steel (CK45)
Material seals: NBR, PU (max. 80°C)
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod thread: With guide rod, anti-rotation
Piston type: Magnetic
Port size / Connection: G 1/8"
Stroke: 80 mm
Temperature range: -20°C…+80°C
Thrust force (6 bar): 458 N
Ways: Double acting
