DIMX 160/900

Tie rod cylinder - ISO 15552 - double acting - adjustable cushioning - INOX

You can add comments on the request summary page.

DIMX 160/900

Tie rod cylinder - ISO 15552 - double acting - adjustable cushioning - INOX

Please register here to access downloads for data sheets and 3D models.

Product number	Diameter	Material seals	Piston rod diameter	Piston rod thread	Port size / Connection	Stroke
DIMX 160/25	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	25 mm
DIMX 160/50	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	50 mm
DIMX 160/80	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	80 mm
DIMX 160/100	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	100 mm
DIMX 160/125	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	125 mm
DIMX 160/160	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	160 mm
DIMX 160/200	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	200 mm
DIMX 160/250	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	250 mm
DIMX 160/320	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	320 mm
DIMX 160/400	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	400 mm
DIMX 160/500	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	500 mm
DIMX 160/600	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	600 mm
DIMX 160/700	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	700 mm
DIMX 160/800	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	800 mm
DIMX 160/1000	Ø160	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	1000 mm
DIMX 200/25	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	25 mm
DIMX 200/50	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	50 mm
DIMX 200/80	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	80 mm
DIMX 200/100	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	100 mm
DIMX 200/125	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	125 mm
DIMX 200/160	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	160 mm
DIMX 200/200	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	200 mm
DIMX 200/250	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	250 mm
DIMX 200/320	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	320 mm
DIMX 200/400	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	400 mm
DIMX 200/500	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	500 mm
DIMX 200/600	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	600 mm
DIMX 200/700	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	700 mm
DIMX 200/800	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	800 mm
DIMX 200/900	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	900 mm
DIMX 200/1000	Ø200	NBR, PU (max. 80°C)	Ø40 mm	M36 x 2 - male thread	G 3/4"	1000 mm

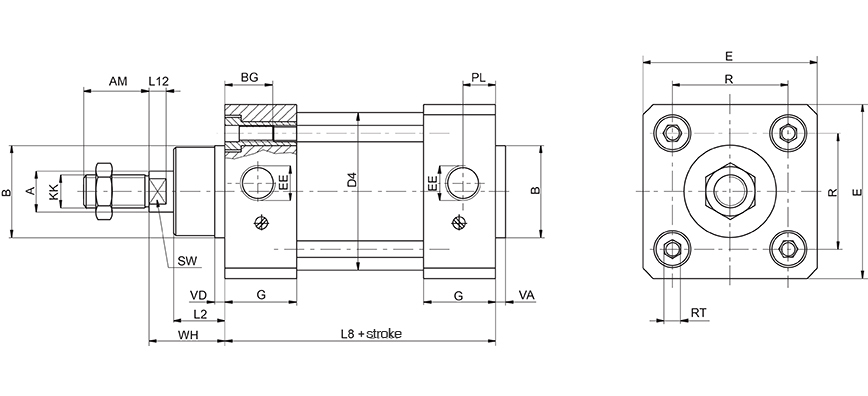

Type number	Ø [mm]	A	AM	B	BG	E	EE	G	KK	L2	L8	L12	PL	R	RT	SW	VA	VD	WH
DIMX 32/...	Ø 32	12	22	30	16	47	G 1/8"	31	M 10 x 1,25	16	94	6	11	32,5	M 6	10	4	5	26
DIMX 40/...	Ø 40	16	24	35	16	55	G 1/4"	34	M 12 x 1,25	20	105	6,5	13	38	M 6	13	4	5	30
DIMX 50/...	Ø 50	20	32	40	16	64	G 1/4"	36	M 16 x 1,5	25	106	8	14	46,5	M 8	16	4	5	37
DIMX 63/...	Ø 63	20	32	45	16	78	G 3/8"	40	M 16 x 1,5	25	121	8	16	56,5	M 8	16	4	5	37
DIMX 80/...	Ø 80	25	40	45	16	95	G 3/8"	42	M 20 x 1,5	32	128	10	16	72	M 10	21	4	5	46
DIMX 100/...	Ø 100	25	40	55	16	115	G 1/2"	45	M 20 x 1,5	35	138	10	18	89	M 10	21	4	5	51
DIMX 125/...	Ø 125	30	54	60	20	142	G 1/2"	53	M 27 x 2	40	160	10	20	110	M 12	27	6	6	65
DIMX 160/...	Ø 160	40	72	65	24	182	G 3/4"	59	M 36 x 2	38	180	12	27	140	M 16	38	6	6	80
DIMX 200/...	Ø 200	40	72	75	24	222	G 3/4"	61	M 36 x 2	55	180	12	35	175	M 16	38	6	6	95

Cushioning:	Adjustable cushioning
Diameter:	Ø160
ISO standard:	ISO 15552
Material body:	Stainless steel
Material guide bushing:	Sintered bronze
Material heads:	Stainless steel
Material piston:	Aluminum
Material piston rod:	Stainless steel (AISI 304)
Material seals:	NBR, PU (max. 80°C)
Medium:	Compressed air
Operating pressure:	1…10 bar
Piston rod diameter:	Ø40 mm
Piston rod thread:	M36 x 2 - male thread
Piston type:	Magnetic
Port size / Connection:	G 3/4"
Stroke:	900 mm
Temperature range:	-20°C…+80°C
Thrust force (6 bar):	11455 N
Traction force (6 bar):	10739 N
Ways:	Double acting
