EDMDG 32/75

Guided compact cylinder - double acting - with ball bearing - adjustable cushioning

You can add comments on the request summary page.

EDMDG 32/75

Guided compact cylinder - double acting - with ball bearing - adjustable cushioning

Please register here to access downloads for data sheets and 3D models.

Product number	Diameter	Material seals	Piston rod diameter	Port size / Connection	Stroke
EDMDG 20/50	Ø20	NBR	Ø10 mm	G 1/8"	50 mm
EDMDG 20/75	Ø20	NBR	Ø10 mm	G 1/8"	75 mm
EDMDG 20/100	Ø20	NBR	Ø10 mm	G 1/8"	100 mm
EDMDG20/125	Ø20	NBR	Ø10 mm	G 1/8"	125 mm
EDMDG 20/150	Ø20	NBR	Ø10 mm	G 1/8"	150 mm
EDMDG 20/175	Ø20	NBR	Ø10 mm	G 1/8"
EDMDG 20/200	Ø20	NBR	Ø10 mm	G 1/8"	200 mm
EDMDG 25/50	Ø25	NBR	Ø10 mm	G 1/8"	50 mm
EDMDG 25/75	Ø25	NBR	Ø10 mm	G 1/8"	75 mm
EDMDG 25/100	Ø25	NBR	Ø10 mm	G 1/8"	100 mm
EDMDG 25/125	Ø25	NBR	Ø10 mm	G 1/8"	125 mm
EDMDG 25/150	Ø25	NBR	Ø10 mm	G 1/8"	150 mm
EDMDG 25/175	Ø25	NBR	Ø10 mm	G 1/8"
EDMDG 25/200	Ø25	NBR	Ø10 mm	G 1/8"	200 mm
EDMDG 32/25	Ø32	NBR	Ø12 mm	G 1/8"	25 mm
EDMDG 32/50	Ø32	NBR	Ø12 mm	G 1/8"	50 mm
EDMDG 32/100	Ø32	NBR	Ø12 mm	G 1/8"	100 mm
EDMDG 32/125	Ø32	NBR	Ø12 mm	G 1/8"	125 mm
EDMDG 32/150	Ø32	NBR	Ø12 mm	G 1/8"	150 mm
EDMDG 32/200	Ø32	NBR	Ø12 mm	G 1/8"	200 mm
EDMDG 40/25	Ø40	NBR	Ø12 mm	G 1/8"	25 mm
EDMDG 40/50	Ø40	NBR	Ø12 mm	G 1/8"	50 mm
EDMDG 40/75	Ø40	NBR	Ø12 mm	G 1/8"	75 mm
EDMDG 40/100	Ø40	NBR	Ø12 mm	G 1/8"	100 mm
EDMDG 40/125	Ø40	NBR	Ø12 mm	G 1/8"	125 mm
EDMDG 40/150	Ø40	NBR	Ø12 mm	G 1/8"	150 mm
EDMDG 40/175	Ø40	NBR	Ø12 mm	G 1/8"
EDMDG 40/200	Ø40	NBR	Ø12 mm	G 1/8"	200 mm
EDMDG 50/25	Ø50	NBR	Ø16 mm	G 1/4"	25 mm
EDMDG 50/50	Ø50	NBR	Ø16 mm	G 1/4"	50 mm
EDMDG 50/75	Ø50	NBR	Ø16 mm	G 1/4"	75 mm
EDMDG 50/100	Ø50	NBR	Ø16 mm	G 1/4"	100 mm
EDMDG 50/125	Ø50	NBR	Ø16 mm	G 1/4"	125 mm
EDMDG 50/150	Ø50	NBR	Ø16 mm	G 1/4"	150 mm
EDMDG 50/175	Ø50	NBR	Ø16 mm	G 1/4"
EDMDG 50/200	Ø50	NBR	Ø16 mm	G 1/4"	200 mm
EDMDG 63/25	Ø63	NBR	Ø16 mm	G 1/4"	25 mm
EDMDG 63/50	Ø63	NBR	Ø16 mm	G 1/4"	50 mm
EDMDG 63/75	Ø63	NBR	Ø16 mm	G 1/4"	75 mm
EDMDG 63/100	Ø63	NBR	Ø16 mm	G 1/4"	100 mm
EDMDG 63/125	Ø63	NBR	Ø16 mm	G 1/4"	125 mm
EDMDG 63/150	Ø63	NBR	Ø16 mm	G 1/4"	150 mm
EDMDG 63/175	Ø63	NBR	Ø16 mm	G 1/4"
EDMDG 63/200	Ø63	NBR	Ø16 mm	G 1/4"	200 mm

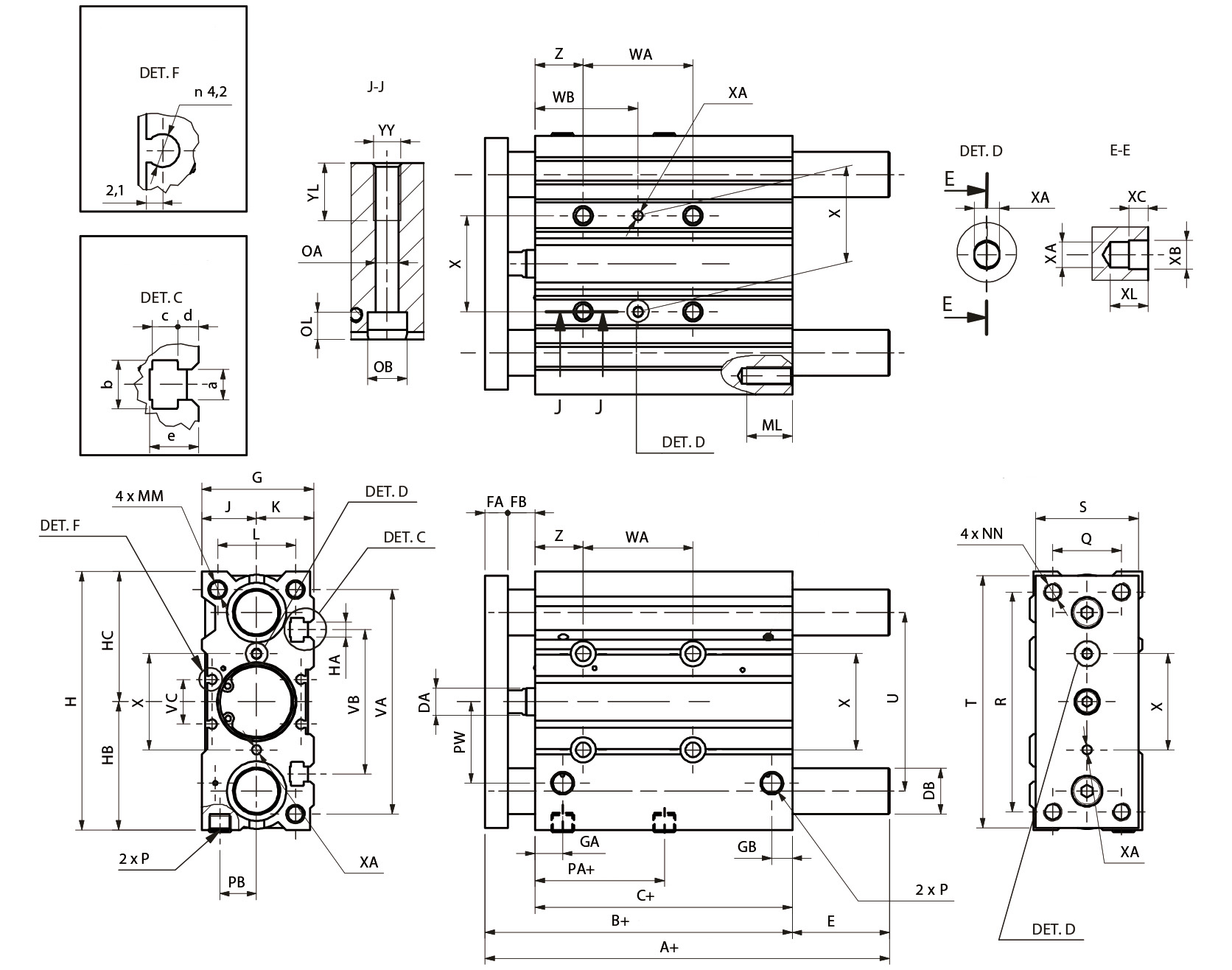

Type number	EDMDG 20/…	EDMDG 25/…	EDMDG 32/…	EDMDG 40/…	EDMDG 50/…	EDMDG 63/…
Ø [mm]	Ø 20	Ø 25	Ø 32	Ø 40	Ø 50	Ø 63
A (löket: 0-25)	95	100,5	84,5	91	97	102
A (löket: 50)	80	85,5	123	123	127,5	127,5
A (löket: 75)	80	85,5	98	98	114	114
A (löket: 100)	99	99,5	115,5	115,5	159	159
A (löket: 125)	104	104,5	118	118	134	134
B	78	78,5	84,5	91	97	102
C	62	62,5	62,5	69	69	74
Ø DA	10	10	12	12	16	16
Ø DB	12	14	20	20	25	25
E (löket: 0-25)	17	22	0	0	0	0
E (löket: 50)	2	7	38,5	32	30,5	25,5
E (löket: 75)	2	7	13,5	7	17	12
E (löket: 100)	21	26	31	24,5	62	57
E (löket: 125)	26	26	33,5	27	37	32
FA	10	10	10	10	15	15
FB	6	6	12	12	13	13
G	36,8	42,8	49	55	65	79
GA	11,5	11,5	12	15	15	15,5
GB	9	10	9	12	12	13,5
H	84	94	113	121	149	163
HA	M5	M5	M6	M6	M8	M10
HB	41,5	46,5	56	60	74	81
HC	42,5	47,5	57	61	75	82
J	18	21	24	27	32	39
K	18,8	21,8	25	28	33	40
L	24	30	34	40	46	58
MM	M5	M6	M8	M8	M10	M10
ML	13	15	16	16	20	22
NN	M5	M6	M8	M8	M10	M10
OA	5,2	5,2	6,5	6,5	8,5	8,5
OB	9,5	9,5	11	11	14	14
OL	5,5	5,5	7,5	7,5	9	9
P	G1/8	G1/8	G1/8	G1/8	G1/4	G1/4
PA	38,5	37,5	31,5	38	34	38
PB	10,5	13,5	16	18	21,5	28
PW	25	30	35,5	39,5	47	58
Q	18	26	30	30	40	50
R	70	78	96	104	130	130
S	30	40	45	45	60	70
T	81	91	110	118	146	158
U	54	64	78	86	110	124
VA	72	82	98	106	130	142
VB	44	50	63	72	92	110
VC	12,5	15	19,5	25	33	34
WA (löket: 0-25)	44	44	48	48	48	52
WA (löket: 100-175)	120	120	124	124	124	128
WA (löket: 200)	200	200	200	200	200	200
WB (löket: 0-75)	39	39	45	46	48	50
WB (löket: 100-175)	77	77	83	84	86	88
WB (löket: 200)	117	117	121	122	124	124
X ±0,02	28	34	42	50	66	80
Ø XA H9	3	4	4	4	5	5
XB	3,5	4,5	4,5	4,5	6	6
XC	3	3	3	3	4	4
XL	6	6	6	6	8	8
YY	M6	M6	M8	M8	M10	M10
YL	12	12	16	16	20	22
Z	17	17	21	22	24	24
a	5,4	5,4	6,5	6,5	8,5	11
b	8,4	8,4	10,5	10,5	13,5	17,8
c	4,5	4,5	5,5	5,5	7,5	10
d	3,6	3,8	4,5	5	5,5	8
e	8,6	9	10,5	10,5	14,5	19,5

Cushioning:	Adjustable cushioning
Diameter:	Ø32
Material body:	Anodized aluminum
Material guide bushing:	Sintered bronze
Material piston:	Aluminum
Material piston rod:	Chromed steel (CK45)
Material seals:	NBR
Medium:	Compressed air
Operating pressure:	1…10 bar
Piston rod diameter:	Ø12 mm
Piston type:	Magnetic
Port size / Connection:	G 1/8"
Stroke:	75 mm
Temperature range:	-20°C…+80°C
Thrust force (6 bar):	458 N
Traction force (6 bar):	394 N
Ways:	Double acting
