ES 304

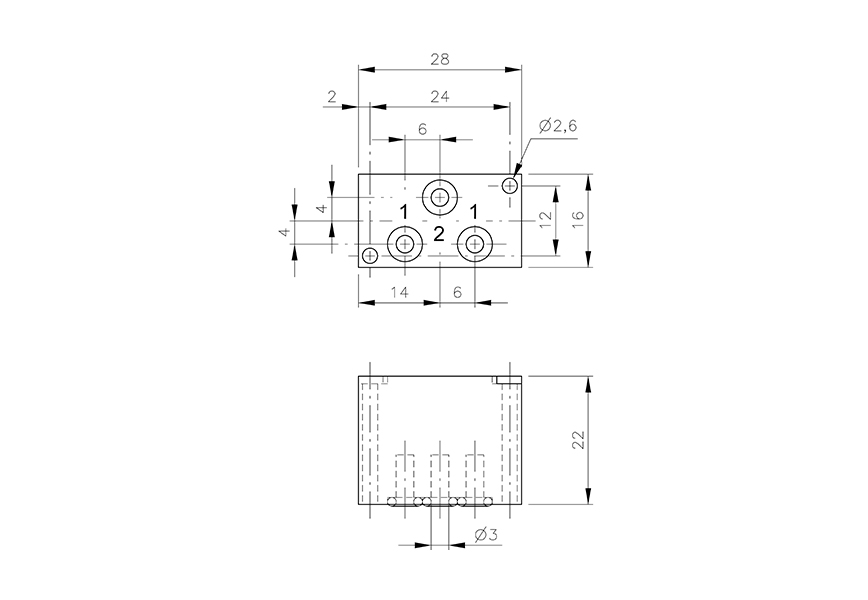

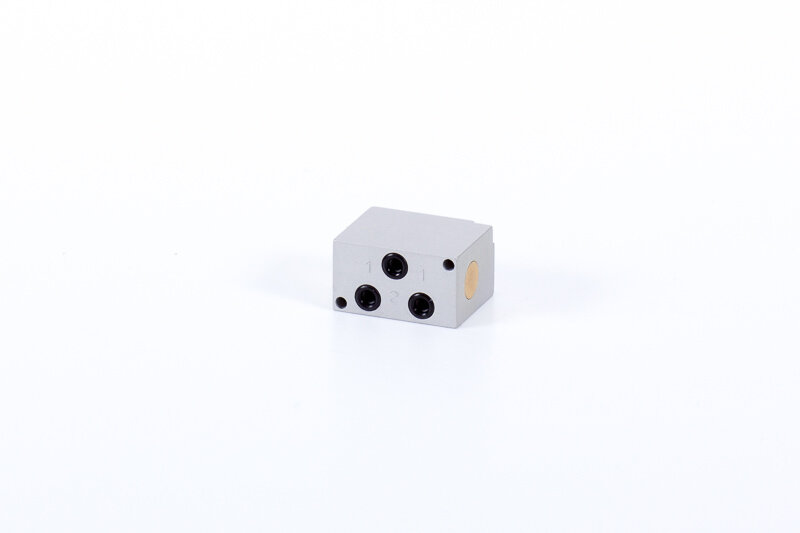

Logic element - AND-Gate - 3 mm orifice size - for sub-base mounting
You can add comments on the request summary page.
ES 304
Logic element - AND-Gate - 3 mm orifice size - for sub-base mounting
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 280 l/min |
|---|---|
| Logic element type: | Logic element |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | Valve for manifold / valve terminal mounting |
| Operating pressure: | 1…10 bar |
| Orifice size: | DN 3 |
| Port orientation: | On one side |
| Port size / Connection: | For manifolds |
| Temperature range: | -10°C…+50°C |
