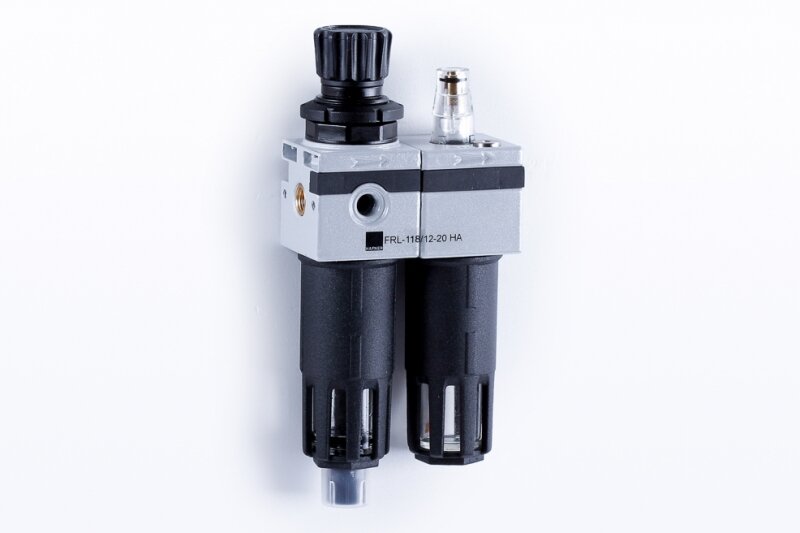

FRL-118/12-20 HA
FRL-unit - Filter-Regulator + Lubricator - semi-automatic drain - 12 bar -20 micron line
You can add comments on the request summary page.
FRL-118/12-20 HA
FRL-unit - Filter-Regulator + Lubricator - semi-automatic drain - 12 bar -20 micron line
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Condensate drain | Filter fineness | Port size / Connection | Regulating range | Size / Series | Options |
|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 700 l/min |
|---|---|
| Condensate drain: | Semi-automatic drain |
| Filter fineness: | 20 micron |
| Material body: | Metal |
| Maximal Inlet operating pressure: | 18 bar |
| Medium: | Compressed air |
| Port size / Connection: | G 1/8" |
| Regulating range: | 0…12 bar |
| Size / Series: | 1 |
| Temperature range: | 0...+50°C |
