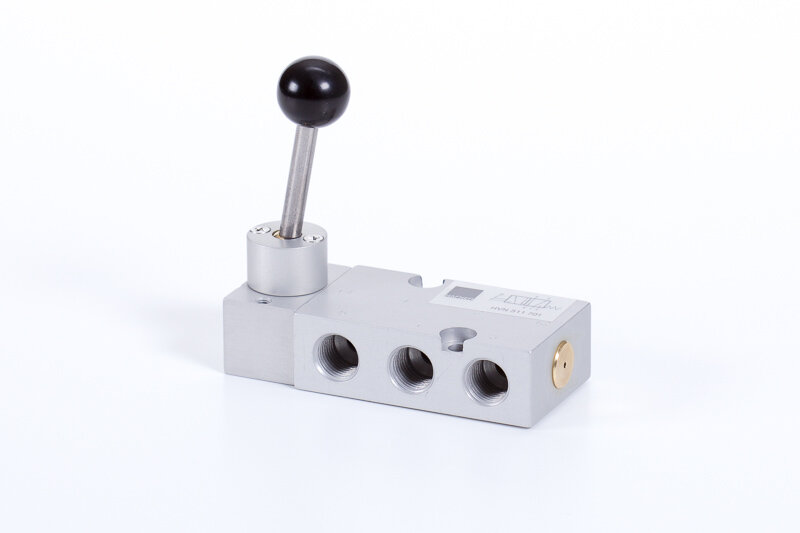

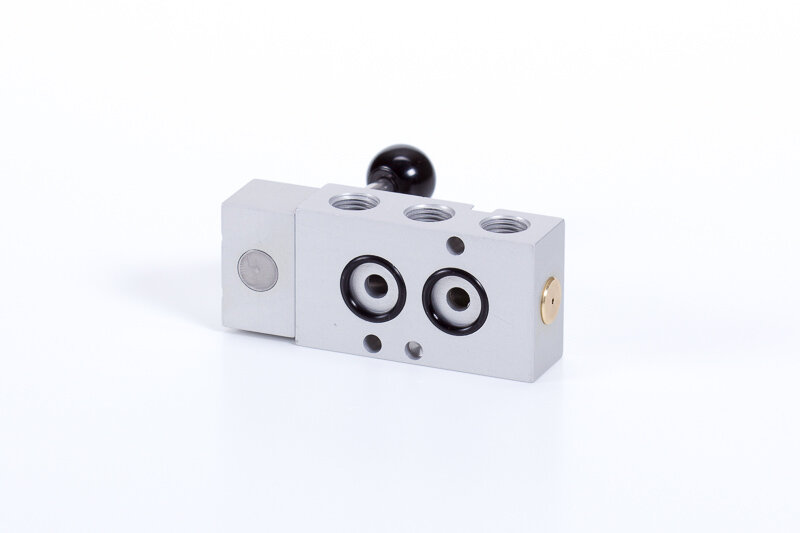

HVRN 531 701
5/3-way hand lever valve - G 3/8" - 3 stable positions, indexed - centre closed - NAMUR 1 - 1/4" interface
You can add comments on the request summary page.
HVRN 531 701
5/3-way hand lever valve - G 3/8" - 3 stable positions, indexed - centre closed - NAMUR 1 - 1/4" interface
Please register here to access downloads for data sheets and 3D models.
| Actuating force: | 20 N |
|---|---|
| Actuation: | Manually actuated - hand lever |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 1250 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 1…10 bar |
| Port orientation: | NAMUR-interface |
| Port size / Connection: | G 1/4" |
| Positional stability: | 3-position, centre closed |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/3-ways |
