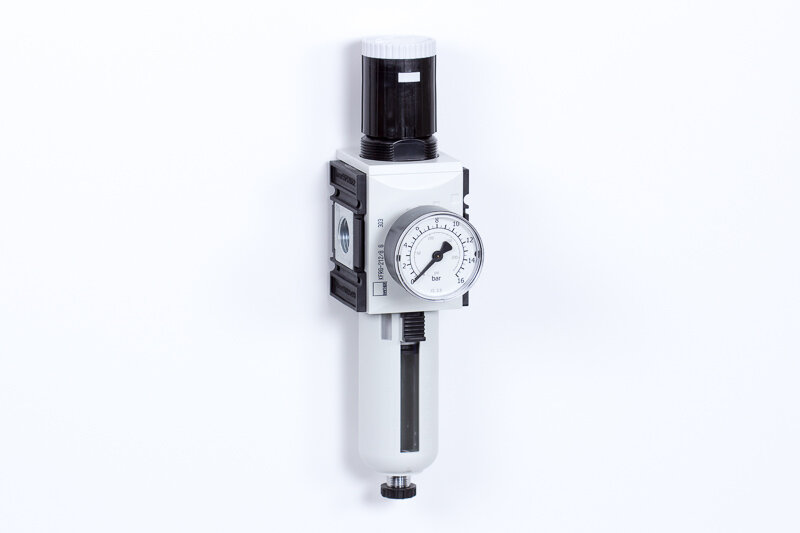

KFRG-212/16 G HA

Filter-regulator - automatic drain - 16 bar -5 micron - size FS-2 - Futura line

You can add comments on the request summary page.

KFRG-212/16 G HA

Filter-regulator - automatic drain - 16 bar -5 micron - size FS-2 - Futura line

Please register here to access downloads for data sheets and 3D models.

Product number	Air flow rate (P1=6 bar, ΔP=1 bar)	Condensate drain	Filter fineness	Port size / Connection	Regulating range	Size / Series
KFRG-014/8 G AM	1000 l/min	Automatic drain	5 micron	G 1/4"	0,5…8 bar	0
KFRG-014/8 G HA	1000 l/min	Semi-automatic drain	5 micron	G 1/4"	0,5…8 bar	0
KFRG-41/8 G AM	13000 l/min	Automatic drain	5 micron	G 1"	0,5…8 bar	4
KFRG-41/8 G HA	13000 l/min	Semi-automatic drain	5 micron	G 1"	0,5…8 bar	4
KFRG-114/8 G AM	2000 l/min	Automatic drain	5 micron	G 1/4"	0,5…8 bar	1
KFRG-114/8 G HA	2000 l/min	Semi-automatic drain	5 micron	G 1/4"	0,5…8 bar	1
KFRG-114/10 G HA	2000 l/min	Semi-automatic drain	5 micron	G 1/4"	0,5…10 bar	1
KFRG-138/8 G HA	2500 l/min	Semi-automatic drain	5 micron	G 3/8"	0,5…8 bar	1
KFRG-212/8 G AM	5200 l/min	Automatic drain	5 micron	G 1/2"	0,5…8 bar	2
KFRG-212/8 G HA	5200 l/min	Semi-automatic drain	5 micron	G 1/2"	0,5…8 bar	2
KFRG-212/10 G AM	5200 l/min	Automatic drain	5 micron	G 1/2"	0,5…10 bar	2
KFRG-238/8 G AM	4500 l/min	Automatic drain	5 micron	G 3/8"	0,5…8 bar	2
KFRG-238/8 G HA	4500 l/min	Semi-automatic drain	5 micron	G 3/8"	0,5…8 bar	2
KFRG-434/8 G AM	13000 l/min	Automatic drain	5 micron	G 3/4"	0,5…8 bar	4
KFRG-434/8 G HA	13000 l/min	Semi-automatic drain	5 micron	G 3/4"	0,5…8 bar	4

Air flow rate (P1=6 bar, ΔP=1 bar):	5200 l/min
Condensate drain:	Semi-automatic drain
Filter fineness:	5 micron
Material body:	Plastic
Material body:	Polyamide
Material bowl:	Polyamide
Material bowl:	Polycarbonate
Material diaphragm:	NBR
Material seals:	NBR
Maximal Inlet operating pressure:	16 bar
Medium:	Compressed air
Port size / Connection:	G 1/2"
Regulating range:	0,5…16 bar
Size / Series:	2
Temperature range:	-10°C…+50°C
Unit width:	63 mm
