KPRG-238/8

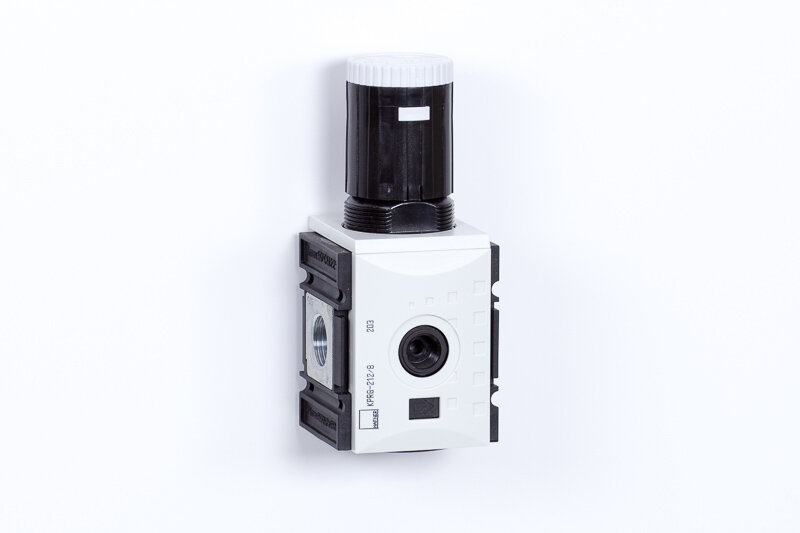

Precision pressure regulator - 8 bar - size FS-2 - Futura line
You can add comments on the request summary page.
KPRG-238/8
Precision pressure regulator - 8 bar - size FS-2 - Futura line
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Port size / Connection | Regulating range | Size / Series | Options |
|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 4500 l/min |
|---|---|
| Material body: | Plastic |
| Material diaphragm: | NBR |
| Material seals: | NBR |
| Maximal Inlet operating pressure: | 16 bar |
| Medium: | Compressed air |
| Port size / Connection: | G 3/8" |
| Regulating range: | 0,5…8 bar |
| Size / Series: | 2 |
| Temperature range: | -10°C…+50°C |
| Unit width: | 63 mm |
