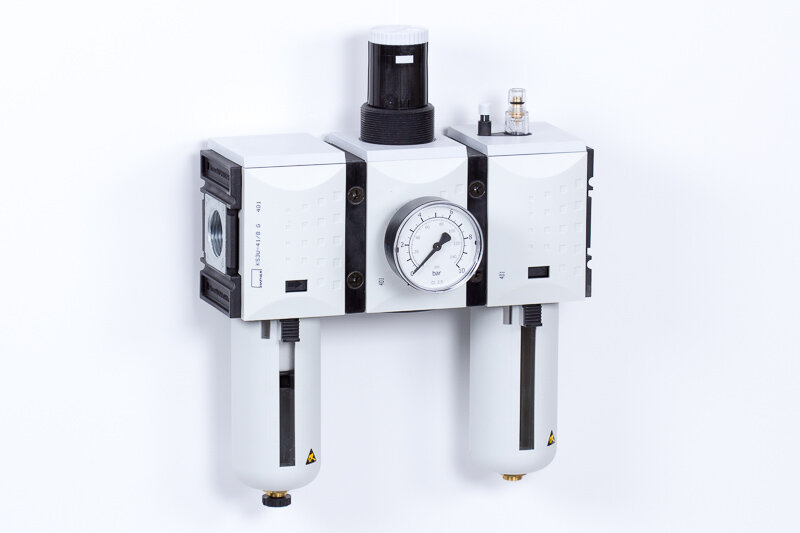

KS3U-41/8 G HA
FRL-unit - Filter + Pressure regulator + Lubricator - semi-automatic drain - 8 bar -5 micron - size FS-4 - Futura line
You can add comments on the request summary page.
KS3U-41/8 G HA
FRL-unit - Filter + Pressure regulator + Lubricator - semi-automatic drain - 8 bar -5 micron - size FS-4 - Futura line
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Condensate drain | Filter fineness | Port size / Connection | Regulating range | Size / Series | Options |
|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 12000 l/min |
|---|---|
| Condensate drain: | Semi-automatic drain |
| Filter fineness: | 5 micron |
| Material body: | Plastic |
| Material body: | Polyamide |
| Material bowl: | Polyamide |
| Material bowl: | Polycarbonate |
| Material diaphragm: | NBR |
| Material seals: | NBR |
| Maximal Inlet operating pressure: | 16 bar |
| Medium: | Compressed air |
| Oil metering: | 10-20 drops/min |
| Port size / Connection: | G 1" |
| Regulating range: | 0,5…8 bar |
| Size / Series: | 4 |
| Temperature range: | -10°C…+50°C |
| Unit width: | 85 mm |
