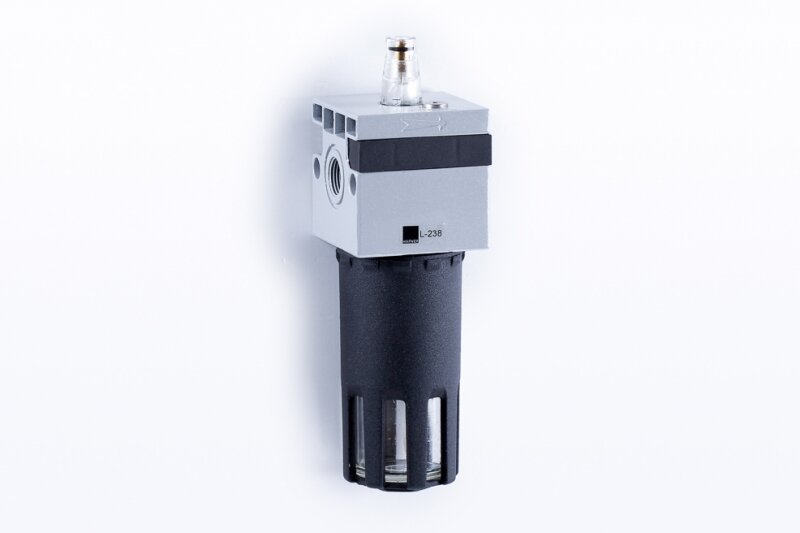

L-238
L-238
L-238
L-238
L-238
L-238

L-238

Lubricator line

You can add comments on the request summary page.

L-238
Lubricator line
Please register here to access downloads for data sheets and 3D models.

Product number Air flow rate (P1=6 bar, ΔP=1 bar) Operating pressure Port size / Connection Size / Series Options
L-31 16000 l/min 18 bar G 1" 3
L-114 1700 l/min 18 bar G 1/4" 1
L-118 1700 l/min 18 bar G 1/8" 1
L-212 4500 l/min 18 bar G 1/2" 2
L-334 16000 l/min 18 bar G 3/4" 3
Air flow rate (P1=6 bar, ΔP=1 bar): 4500 l/min
Material body: Metal
Medium: Compressed air
Operating pressure: 18 bar
Port size / Connection: G 3/8"
Size / Series: 2
Temperature range: 0...+50°C
