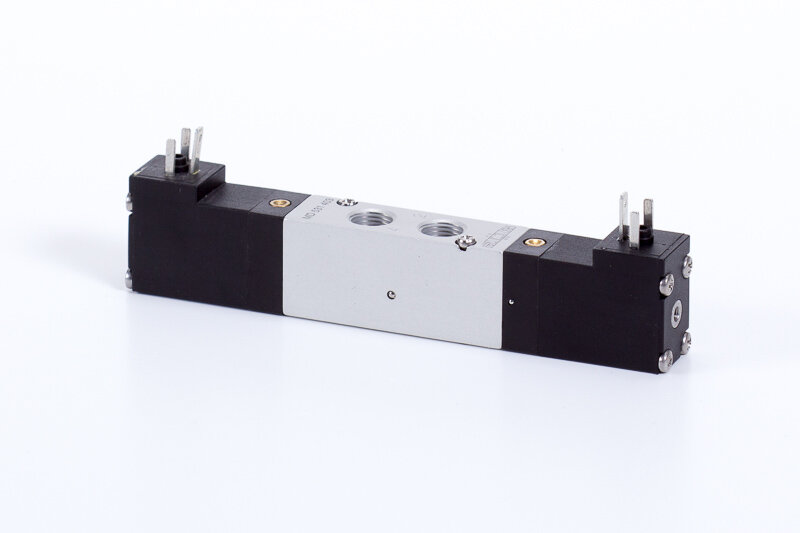

MD 532 403 - 12 DC
5/3-way solenoid valve - G 1/8" - spring return to middle position - centre exhausted - with manual override - for manifold plate mounting - port 2 and 4 in the valve - 12DC
You can add comments on the request summary page.
MD 532 403 - 12 DC
5/3-way solenoid valve - G 1/8" - spring return to middle position - centre exhausted - with manual override - for manifold plate mounting - port 2 and 4 in the valve - 12DC
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 450 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | Valve for manifold / valve terminal mounting |
| Operating pressure: | 3…10 bar |
| Orifice size: | DN 4 |
| Port orientation: | On two sides |
| Port size | 1: | In the manifold |
| Port size | 2, 4: | G 1/8" |
| Port size | 3, 5: | In the manifold |
| Positional stability: | 3-position, centre exhausted |
| Power consumption: | 1,8 W / 3 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Valve width: | 16 mm |
| Voltage: | 12 V DC |
| Ways: | 5/3-ways |
