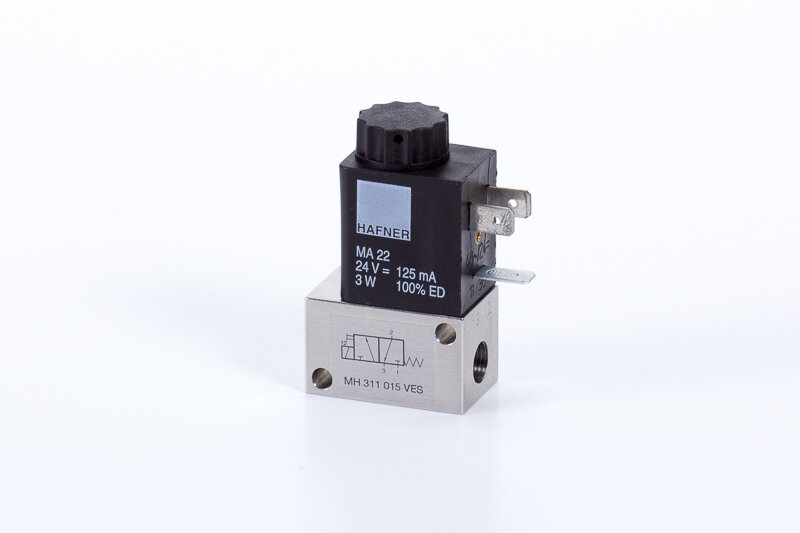

MH 311 015 VES
Stainless steel 3/2-way direct acting solenoid valve - G 1/8" - monostable - NC - mechanical spring return - with manual override - INOX
You can add comments on the request summary page.
MH 311 015 VES
Stainless steel 3/2-way direct acting solenoid valve - G 1/8" - monostable - NC - mechanical spring return - with manual override - INOX
Please register here to access downloads for data sheets and 3D models.
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 50 l/min |
| Material body: | Stainless steel |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 0…10 bar |
| Orifice size: | DN 1,2 |
| Port orientation: | On two sides |
| Port size / Connection: | G 1/8" |
| Positional stability: | Monostable |
| Power consumption: | 3 W / 5 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Valve width: | 22 mm+ |
| Ways: | 3/2-ways |
