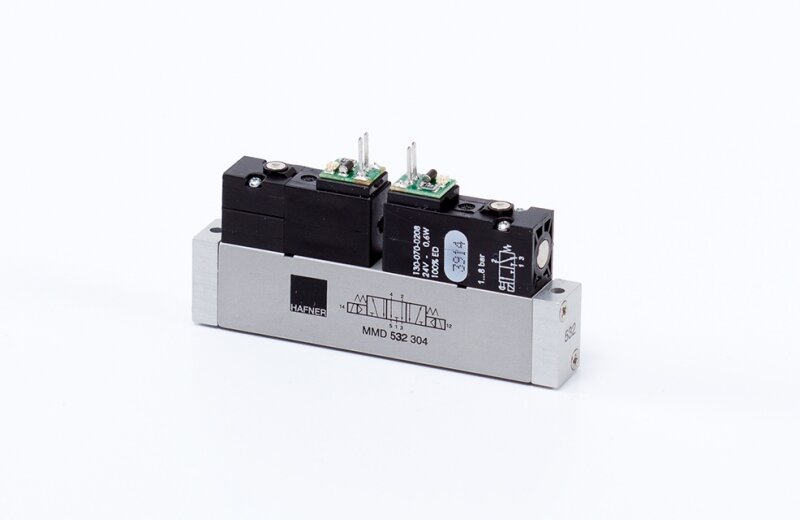

MMD 532 304 T - 24 DC
5/3-way solenoid valve - 3 mm orifice size - spring return to middle position - centre exhausted - with manual override - for valve terminals - all ports in the plate - 24DC
You can add comments on the request summary page.
MMD 532 304 T - 24 DC
5/3-way solenoid valve - 3 mm orifice size - spring return to middle position - centre exhausted - with manual override - for valve terminals - all ports in the plate - 24DC
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Actuation: | Electrically actuated |
|---|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 230 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | Valve for manifold / valve terminal mounting |
| Operating pressure: | 3…8 bar |
| Orifice size: | DN 3 |
| Port orientation: | On the bottom for manifold assembly |
| Port size / Connection: | For manifolds |
| Positional stability: | 3-position, centre exhausted |
| Power consumption: | 0,6 W |
| Required valve positions: | 2 valve stations |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Valve width: | 10 mm |
| Voltage: | 24 V DC |
| Ways: | 5/3-ways |
