P 510 501 G

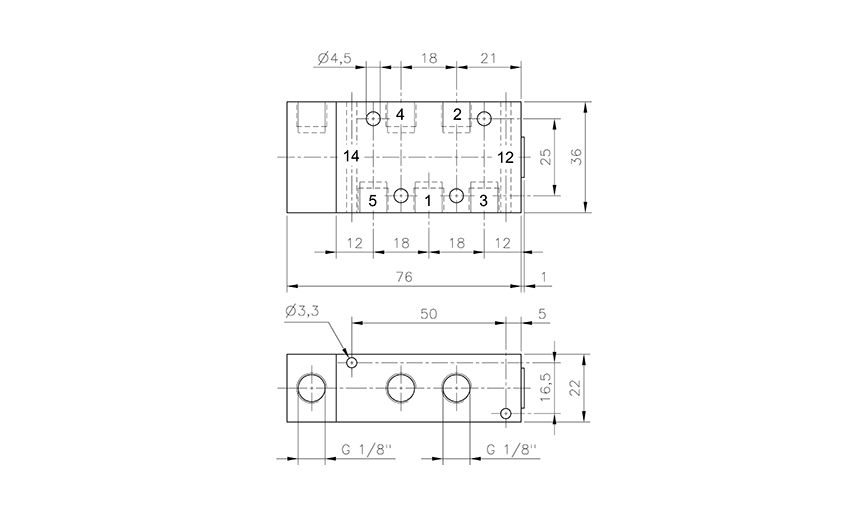

5/2-way pilot actuated valve - G 1/8" - monostable - air spring return - G-Series
You can add comments on the request summary page.
P 510 501 G
5/2-way pilot actuated valve - G 1/8" - monostable - air spring return - G-Series
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|
| Actuation: | Pneumatically actuated |
|---|---|
| Actuation pressure: | Same as operating pressure |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 650 l/min |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | G-series: in-line installationand manifold mounting possibl |
| Operating pressure: | 2…10 bar |
| Port orientation: | On two sides |
| Port size: | G 1/8" |
| Port size / Connection: | G 1/8" |
| Positional stability: | Monostable |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/2-ways |
