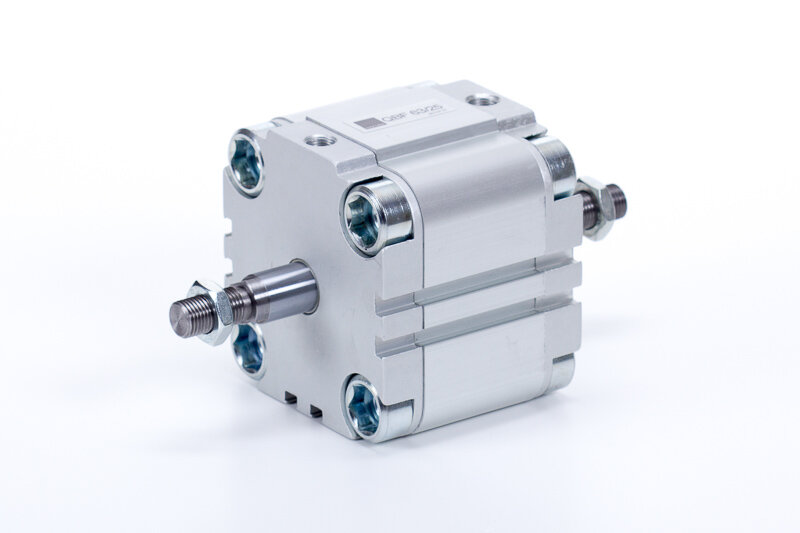

QBF 100/40

Compact cylinder - UNITOP - double acting - magnetic piston - male thread - through piston rod
Custom cylinder length (optional)
The value must be between 5 and 400.

You can add comments on the request summary page.

QBF 100/40
Compact cylinder - UNITOP - double acting - magnetic piston - male thread - through piston rod
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod diameter Piston rod thread Port size / Connection Stroke Options
QBF 12/5 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 5 mm
QBF 12/10 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 10 mm
QBF 12/15 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 15 mm
QBF 12/20 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 20 mm
QBF 12/25 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 25 mm
QBF 12/30 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 30 mm
QBF 12/40 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 40 mm
QBF 12/50 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 50 mm
QBF 12/80 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 80 mm
QBF 12/100 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 100 mm
QBF 12/125 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 125 mm
QBF 12/150 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 150 mm
QBF 12/200 Ø12 NBR, PU (max. 80°C) Ø6 mm M6 - male thread M5 200 mm
QBF 16/5 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 5 mm
QBF 16/10 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 10 mm
QBF 16/15 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 15 mm
QBF 16/20 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 20 mm
QBF 16/25 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 25 mm
QBF 16/30 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 30 mm
QBF 16/40 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 40 mm
QBF 16/50 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 50 mm
QBF 16/80 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 80 mm
QBF 16/100 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 100 mm
QBF 16/125 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 125 mm
QBF 16/150 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 150 mm
QBF 16/200 Ø16 NBR, PU (max. 80°C) Ø8 mm M8 - male thread M5 200 mm
QBF 20/5 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 5 mm
QBF 20/10 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 10 mm
QBF 20/15 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 15 mm
QBF 20/20 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 20 mm
QBF 20/25 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 25 mm
QBF 20/30 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 30 mm
QBF 20/40 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 40 mm
QBF 20/50 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 50 mm
QBF 20/80 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 80 mm
QBF 20/100 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 100 mm
QBF 20/125 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 125 mm
QBF 20/150 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 150 mm
QBF 20/200 Ø20 NBR, PU (max. 80°C) Ø10 mm M10 x 1,25 - male thread M5 200 mm
QBF 32/5 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 5 mm
QBF 32/10 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 10 mm
QBF 32/15 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 15 mm
QBF 32/20 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 20 mm
QBF 32/25 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 25 mm
QBF 32/30 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 30 mm
QBF 32/40 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 40 mm
QBF 32/50 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 50 mm
QBF 32/60 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 60 mm
QBF 32/80 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 80 mm
QBF 32/100 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 100 mm
QBF 32/125 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 125 mm
QBF 32/150 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 150 mm
QBF 32/200 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 200 mm
QBF 32/250 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 250 mm
QBF 32/300 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 300 mm
QBF 40/5 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 5 mm
QBF 40/10 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 10 mm
QBF 40/15 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 15 mm
QBF 40/20 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 20 mm
QBF 40/25 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 25 mm
QBF 40/30 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 30 mm
QBF 40/40 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 40 mm
QBF 40/50 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 50 mm
QBF 40/60 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 60 mm
QBF 40/80 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 80 mm
QBF 40/100 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 100 mm
QBF 40/125 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 125 mm
QBF 40/150 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 150 mm
QBF 40/200 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 200 mm
QBF 40/250 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 250 mm
QBF 40/300 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 300 mm
QBF 50/5 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 5 mm
QBF 50/10 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 10 mm
QBF 50/15 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 15 mm
QBF 50/20 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 20 mm
QBF 50/25 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 25 mm
QBF 50/30 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 30 mm
QBF 50/40 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 40 mm
QBF 50/50 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 50 mm
QBF 50/60 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 60 mm
QBF 50/80 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 80 mm
QBF 50/100 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 100 mm
QBF 50/125 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 125 mm
QBF 50/150 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 150 mm
QBF 50/200 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 200 mm
QBF 50/250 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 250 mm
QBF 50/300 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 300 mm
QBF 63/5 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 5 mm
QBF 63/10 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 10 mm
QBF 63/15 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 15 mm
QBF 63/20 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 20 mm
QBF 63/25 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 25 mm
QBF 63/30 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 30 mm
QBF 63/40 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 40 mm
QBF 63/50 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 50 mm
QBF 63/60 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 60 mm
QBF 63/80 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 80 mm
QBF 63/100 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 100 mm
QBF 63/125 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 125 mm
QBF 63/150 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 150 mm
QBF 63/200 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 200 mm
QBF 63/250 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 250 mm
QBF 63/300 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 300 mm
QBF 80/5 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 5 mm
QBF 80/10 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 10 mm
QBF 80/15 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 15 mm
QBF 80/20 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 20 mm
QBF 80/25 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 25 mm
QBF 80/30 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 30 mm
QBF 80/40 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 40 mm
QBF 80/50 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 50 mm
QBF 80/60 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 60 mm
QBF 80/80 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 80 mm
QBF 80/100 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 100 mm
QBF 80/125 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 125 mm
QBF 80/150 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 150 mm
QBF 80/200 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 200 mm
QBF 80/250 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 250 mm
QBF 80/300 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 300 mm
QBF 80/400 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 400 mm
QBF 100/5 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 5 mm
QBF 100/10 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 10 mm
QBF 100/15 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 15 mm
QBF 100/20 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 20 mm
QBF 100/25 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 25 mm
QBF 100/30 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 30 mm
QBF 100/50 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 50 mm
QBF 100/60 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 60 mm
QBF 100/80 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 80 mm
QBF 100/100 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 100 mm
QBF 100/125 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 125 mm
QBF 100/150 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 150 mm
QBF 100/200 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 200 mm
QBF 100/250 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 250 mm
QBF 100/300 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 300 mm
QBF 100/400 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/4" 400 mm

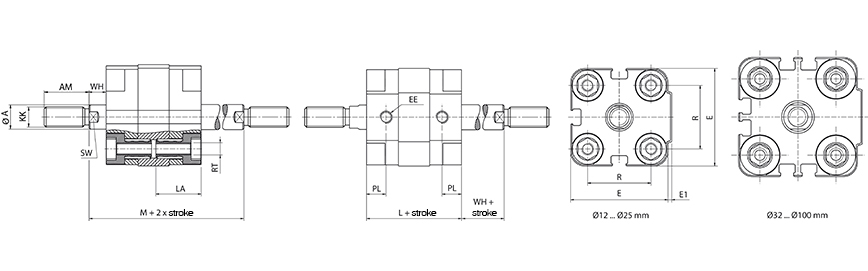

Type number Ø [mm] A E E1 L M R T AM EE KK LA PL RT SW WH
QBF 12/... Ø 12 6 29 1 35 50 18 1,5 16 M 5 M 6 16 6,5 M 4 5 7,5
QBF 16/... Ø 16 8 29 1 35 52 18 2 20 M 5 M 8 16 6,5 M 4 7 8,5
QBF 20/... Ø 20 10 36 1,5 39 53 22 2 22 M 5 M 10 x 1,25 18,5 8 M 5 9 7
QBF 25/... Ø 25 10 40 1,5 39 53 26 2 22 M 5 M 10 x 1,25 18,5 8 M 5 9 7
QBF 32/... Ø 32 12 50 2 42 56 32 2,8 22 G 1/8" M 10 x 1,25 21,5 6,5 M 6 10 7
QBF 40/... Ø 40 12 60 2,5 45,5 62,5 42 2,8 22 G 1/8" M 10 x 1,25 21,5 7,5 M 6 10 8,5
QBF 50/... Ø 50 16 68 3 45,5 65,5 50 3,5 24 G 1/8" M 12 x 1,25 23,5 7,5 M 8 13 10
QBF 63/... Ø 63 16 87 4 51 72 62 3,5 24 G 1/8" M 12 x 1,25 28,5 7,5 M 10 13 10,5
QBF 80/... Ø 80 20 107 4 62 88 82 4,5 32 G 1/8" M 16 x 1,5 28,5 9,5 M 10 17 13
QBF 100/... Ø 100 25 128 5 68 99 103 6 40 G 1/4" M 20 x 1,5 28,5 10,5 M 10 22 15,5
Cushioning: Built-in cushioning rings
Diameter: Ø100
Material body: Anodized aluminum
Material guide bushing: Sintered bronze
Material heads: Anodized aluminum
Material piston: Aluminum
Material piston rod: Chromed steel (CK45)
Material seals: NBR, PU (max. 80°C)
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod diameter: Ø25 mm
Piston rod thread: M16 x 1,5 - male thread
Piston type: Magnetic
Port size / Connection: G 1/4"
Stroke: 40 mm
Temperature range: -20°C…+80°C
Thrust force (6 bar): 4195 N
Ways: Double acting
