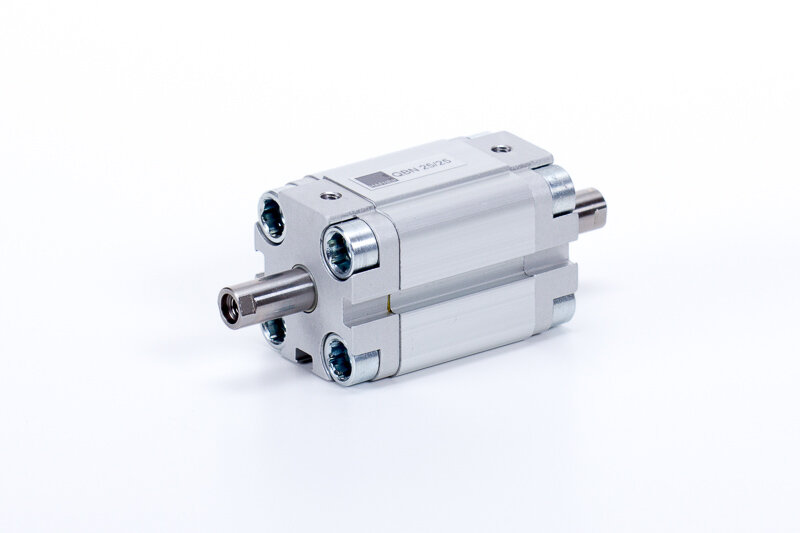

Compact cylinder - UNITOP - double acting - magnetic piston - female thread - through piston rod

You can add comments on the request summary page.

QBN 50/250
Compact cylinder - UNITOP - double acting - magnetic piston - female thread - through piston rod
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod diameter Piston rod thread Port size / Connection Stroke Options
QBN 12/5 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 5 mm
QBN 12/10 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 10 mm
QBN 12/15 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 15 mm
QBN 12/20 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 20 mm
QBN 12/25 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 25 mm
QBN 12/30 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 30 mm
QBN 12/40 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 40 mm
QBN 12/50 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 50 mm
QBN 12/80 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 80 mm
QBN 12/100 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 100 mm
QBN 12/125 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 125 mm
QBN 12/150 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 150 mm
QBN 12/200 Ø12 NBR, PU (max. 80°C) Ø6 mm M3 - female thread M5 200 mm
QBN 16/5 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 5 mm
QBN 16/10 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 10 mm
QBN 16/15 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 15 mm
QBN 16/20 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 20 mm
QBN 16/25 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 25 mm
QBN 16/30 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 30 mm
QBN 16/40 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 40 mm
QBN 16/80 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 80 mm
QBN 16/100 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 100 mm
QBN 16/125 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 125 mm
QBN 16/150 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 150 mm
QBN 16/200 Ø16 NBR, PU (max. 80°C) Ø8 mm M4 - female thread M5 200 mm
QBN 20/5 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 5 mm
QBN 20/10 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 10 mm
QBN 20/15 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 15 mm
QBN 20/20 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 20 mm
QBN 20/25 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 25 mm
QBN 20/30 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 30 mm
QBN 20/40 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 40 mm
QBN 20/50 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 50 mm
QBN 20/80 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 80 mm
QBN 20/100 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 100 mm
QBN 20/125 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 125 mm
QBN 20/150 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 150 mm
QBN 20/200 Ø20 NBR, PU (max. 80°C) Ø10 mm M5 - female thread M5 200 mm
QBN 32/5 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 5 mm
QBN 32/10 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 10 mm
QBN 32/15 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 15 mm
QBN 32/20 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 20 mm
QBN 32/25 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 25 mm
QBN 32/30 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 30 mm
QBN 32/40 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 40 mm
QBN 32/50 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 50 mm
QBN 32/60 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 60 mm
QBN 32/80 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 80 mm
QBN 32/100 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 100 mm
QBN 32/125 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 125 mm
QBN 32/150 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 150 mm
QBN 32/200 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 200 mm
QBN 32/250 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 250 mm
QBN 32/300 Ø32 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 300 mm
QBN 40/5 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 5 mm
QBN 40/10 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 10 mm
QBN 40/15 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 15 mm
QBN 40/20 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 20 mm
QBN 40/25 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 25 mm
QBN 40/30 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 30 mm
QBN 40/40 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 40 mm
QBN 40/50 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 50 mm
QBN 40/60 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 60 mm
QBN 40/80 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 80 mm
QBN 40/100 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 100 mm
QBN 40/125 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 125 mm
QBN 40/150 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 150 mm
QBN 40/200 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 200 mm
QBN 40/250 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 250 mm
QBN 40/300 Ø40 NBR, PU (max. 80°C) Ø12 mm M6 - female thread G 1/8" 300 mm
QBN 50/5 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 5 mm
QBN 50/10 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 10 mm
QBN 50/15 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 15 mm
QBN 50/20 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 20 mm
QBN 50/25 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 25 mm
QBN 50/30 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 30 mm
QBN 50/40 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 40 mm
QBN 50/50 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 50 mm
QBN 50/60 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 60 mm
QBN 50/80 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 80 mm
QBN 50/100 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 100 mm
QBN 50/125 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 125 mm
QBN 50/150 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 150 mm
QBN 50/200 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 200 mm
QBN 50/300 Ø50 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 300 mm
QBN 63/5 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 5 mm
QBN 63/10 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 10 mm
QBN 63/15 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 15 mm
QBN 63/20 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 20 mm
QBN 63/25 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 25 mm
QBN 63/30 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 30 mm
QBN 63/40 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 40 mm
QBN 63/50 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 50 mm
QBN 63/60 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 60 mm
QBN 63/80 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 80 mm
QBN 63/100 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 100 mm
QBN 63/125 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 125 mm
QBN 63/150 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 150 mm
QBN 63/200 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 200 mm
QBN 63/250 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 250 mm
QBN 63/300 Ø63 NBR, PU (max. 80°C) Ø16 mm M8 - female thread G 1/8" 300 mm
QBN 80/5 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 5 mm
QBN 80/10 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 10 mm
QBN 80/15 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 15 mm
QBN 80/20 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 20 mm
QBN 80/25 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 25 mm
QBN 80/30 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 30 mm
QBN 80/40 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 40 mm
QBN 80/50 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 50 mm
QBN 80/60 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 60 mm
QBN 80/80 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 80 mm
QBN 80/100 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 100 mm
QBN 80/125 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 125 mm
QBN 80/150 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 150 mm
QBN 80/200 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 200 mm
QBN 80/250 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 250 mm
QBN 80/300 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 300 mm
QBN 80/400 Ø80 NBR, PU (max. 80°C) Ø20 mm M10 - female thread G 1/8" 400 mm
QBN 100/5 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 5 mm
QBN 100/10 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 10 mm
QBN 100/15 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 15 mm
QBN 100/20 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 20 mm
QBN 100/25 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 25 mm
QBN 100/30 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 30 mm
QBN 100/40 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 40 mm
QBN 100/50 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 50 mm
QBN 100/60 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 60 mm
QBN 100/80 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 80 mm
QBN 100/100 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 100 mm
QBN 100/125 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 125 mm
QBN 100/150 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 150 mm
QBN 100/200 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 200 mm
QBN 100/250 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 250 mm
QBN 100/300 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 300 mm
QBN 100/400 Ø100 NBR, PU (max. 80°C) Ø25 mm M12 - female thread G 1/4" 400 mm
Type number Ø [mm] A E E1 L M R T AF EE KF LA PL RT SW WH
QBN 12/... Ø 12 6 29 1 35 50 18 1,5 6 M 5 M 3 16 6,5 M 4 5 7,5
QBN 16/... Ø 16 8 29 1 35 52 18 2 8 M 5 M 4 16 6,5 M 4 7 8,5
QBN 20/... Ø 20 10 36 1,5 39 53 22 2 8 M 5 M 5 18,5 8 M 5 9 7
QBN 25/... Ø 25 10 40 1,5 39 53 26 2 8 M 5 M 5 18,5 8 M 5 9 7
QBN 32/... Ø 32 12 50 2 42 56 32 2,8 10 G 1/8" M 6 21,5 6,5 M 6 10 7
QBN 40/... Ø 40 12 60 2,5 45,5 62,5 42 2,8 10 G 1/8" M 6 21,5 7,5 M 6 10 8,5
QBN 50/... Ø 50 16 68 3 45,5 65,5 50 3,5 12 G 1/8" M 8 23,5 7,5 M 8 13 10
QBN 63/... Ø 63 16 87 4 51 72 62 3,5 12 G 1/8" M 8 28,5 7,5 M 10 13 10,5
QBN 80/... Ø 80 20 107 4 62 88 82 4,5 16 G 1/8" M 10 28,5 9,5 M 10 17 13
QBN 100/... Ø 100 25 128 5 68 99 103 6 20 G 1/4" M 12 28,5 10,5 M 10 22 15,5
Cushioning: Built-in cushioning rings
Diameter: Ø50
Material body: Anodized aluminum
Material guide bushing: Sintered bronze
Material heads: Anodized aluminum
Material piston: Aluminum
Material piston rod: Chromed steel (CK45)
Material seals: NBR, PU (max. 80°C)
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod diameter: Ø16 mm
Piston rod thread: M8 - female thread
Piston type: Magnetic
Port size / Connection: G 1/8"
Stroke: 250 mm
Temperature range: -20°C…+80°C
Thrust force (6 bar): 930 N
Traction force (6 bar): 1004 N
Ways: Double acting
