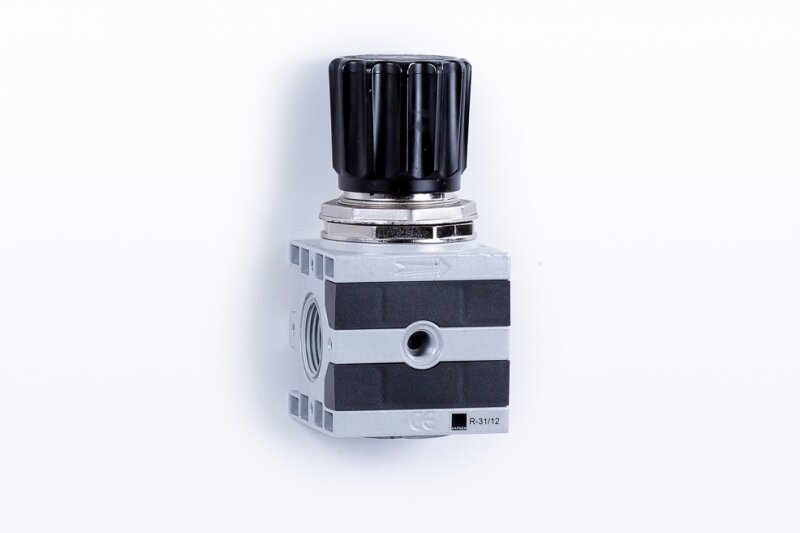

R-31/12
Pressure regulator - 12 bar line
You can add comments on the request summary page.
R-31/12
Pressure regulator - 12 bar line
Please register here to access downloads for data sheets and 3D models.
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Port size / Connection | Regulating range | Size / Series | Options |
|---|
| Air flow rate (P1=6 bar, ΔP=1 bar): | 4500 l/min |
|---|---|
| Maximal Inlet operating pressure: | 18 bar |
| Medium: | Compressed air |
| Port size / Connection: | G 1" |
| Regulating range: | 0…12 bar |
| Size / Series: | 3 |
| Temperature range: | 0...+50°C |
