REMV 20/50

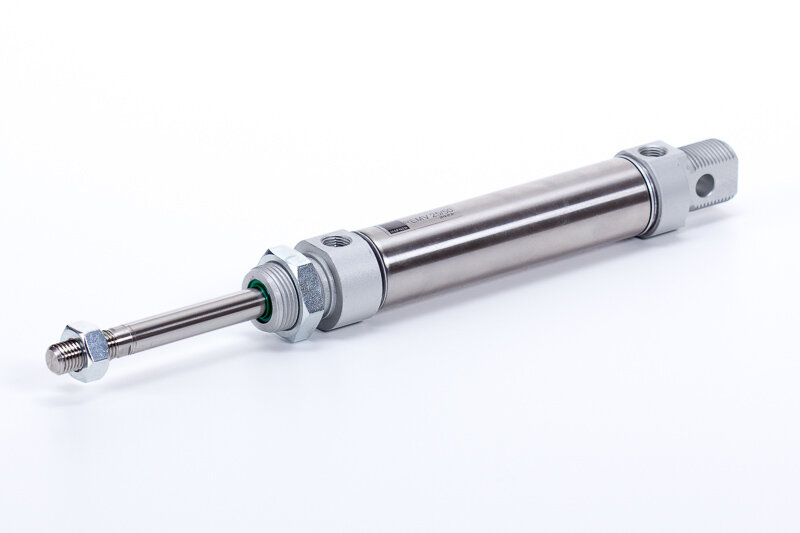

Round cylinder - ISO 6432 - single acting - magnetic piston - spring pushes piston rod out

You can add comments on the request summary page.

REMV 20/50

Round cylinder - ISO 6432 - single acting - magnetic piston - spring pushes piston rod out

Please register here to access downloads for data sheets and 3D models.

Product number	Diameter	Material seals	Piston rod diameter	Piston rod thread	Port size / Connection	Stroke
REMV 16/10	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	10 mm
REMV 16/25	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	25 mm
REMV 16/50	Ø16	NBR, PU (max. 80°C)	Ø6 mm	M6 - male thread	M5	50 mm
REMV 20/10	Ø20	NBR, PU (max. 80°C)	Ø8 mm	M8 - male thread	G 1/8"	10 mm
REMV 20/25	Ø20	NBR, PU (max. 80°C)	Ø8 mm	M8 - male thread	G 1/8"	25 mm
REMV 25/10	Ø25	NBR, PU (max. 80°C)	Ø10 mm	M10 x 1,25 - male thread	G 1/8"	10 mm
REMV 25/25	Ø25	NBR, PU (max. 80°C)	Ø10 mm	M10 x 1,25 - male thread	G 1/8"	25 mm
REMV 25/50	Ø25	NBR, PU (max. 80°C)	Ø10 mm	M10 x 1,25 - male thread	G 1/8"	50 mm

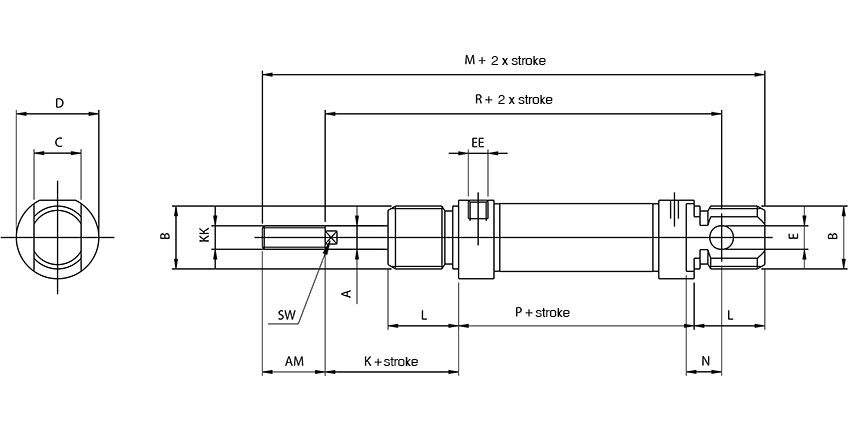

Type number	Ø [mm]	A	B	C	D	E	K	L	M	N	P	R	AM	EE	KK	SW
REMV 16/...	Ø 16	6	M 16 x 1,5	12	19	6	22	18	134,5	9	78,5	107,5	16	M 5	M 6	5
REMV 20/...	Ø 20	8	M 22 x 1,5	16	27	8	24	20	154	12	90	118	20	G 1/8"	M 8	7
REMV 25/...	Ø 25	10	M 22 x 1,5	16	30	8	28	22	166	12	94	130	22	G 1/8"	M 10 x 1,25	9

Cushioning:	Built-in cushioning rings
Diameter:	Ø20
ISO standard:	ISO 6432
Material body:	Stainless steel
Material guide bushing:	Sintered bronze
Material heads:	Anodized aluminum
Material piston:	Brass
Material piston rod:	Stainless steel (AISI 304)
Material seals:	NBR, PU (max. 80°C)
Medium:	Compressed air
Operating pressure:	1…10 bar
Piston rod diameter:	Ø8 mm
Piston rod position:	Spring pushes piston rod out without pressure
Piston rod thread:	M8 - male thread
Piston type:	Magnetic
Port size / Connection:	G 1/8"
Stroke:	50 mm
Temperature range:	-20°C…+80°C
Traction force (6 bar):	150 N
Ways:	Single acting
