RG 8-10

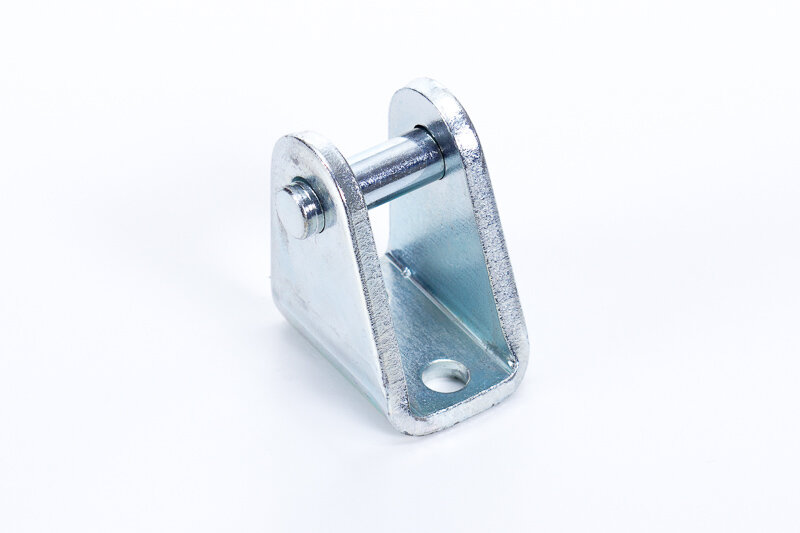

Rear hinge for ISO 6432 cylinder
You can add comments on the request summary page.
RG 8-10
Rear hinge for ISO 6432 cylinder
Please register here to access downloads for data sheets and 3D models.
| Product number | Diameter | Options |
|---|

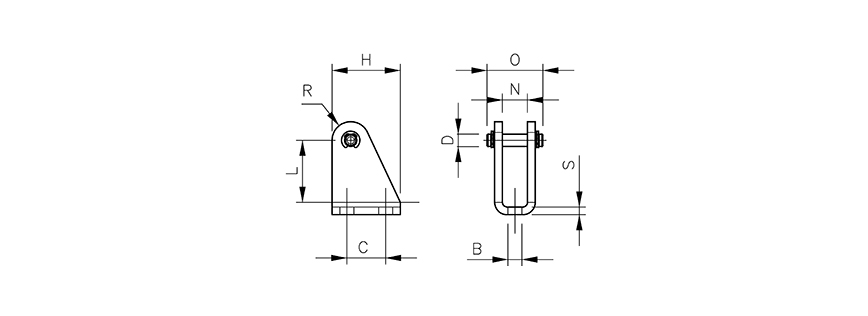

| Type number | Diameter | B | C | D | H | L | N | O | R | S |
|---|---|---|---|---|---|---|---|---|---|---|
| RG 8-10 | Ø 8 - 10 | 4,5 | 12,5 | 4 | 20 | 24 | 8,1 | 17 | 5 | 2,5 |
| RG 12-16 | Ø 12 - 16 | 5,5 | 15 | 6 | 25 | 27 | 12,1 | 23 | 7 | 3 |
| RG 20-25 | Ø 20 - 25 | 6,6 | 20 | 8 | 32 | 30 | 16,1 | 29,5 | 10 | 4 |
| Diameter: | Ø8-10 |
|---|---|
| Material: | Steel |
