TQ-PCT-4
Push-in connector - T-adaptor
You can add comments on the request summary page.
TQ-PCT-4
Push-in connector - T-adaptor
Please register here to access downloads for data sheets and 3D models.
| Product number | Options |
|---|

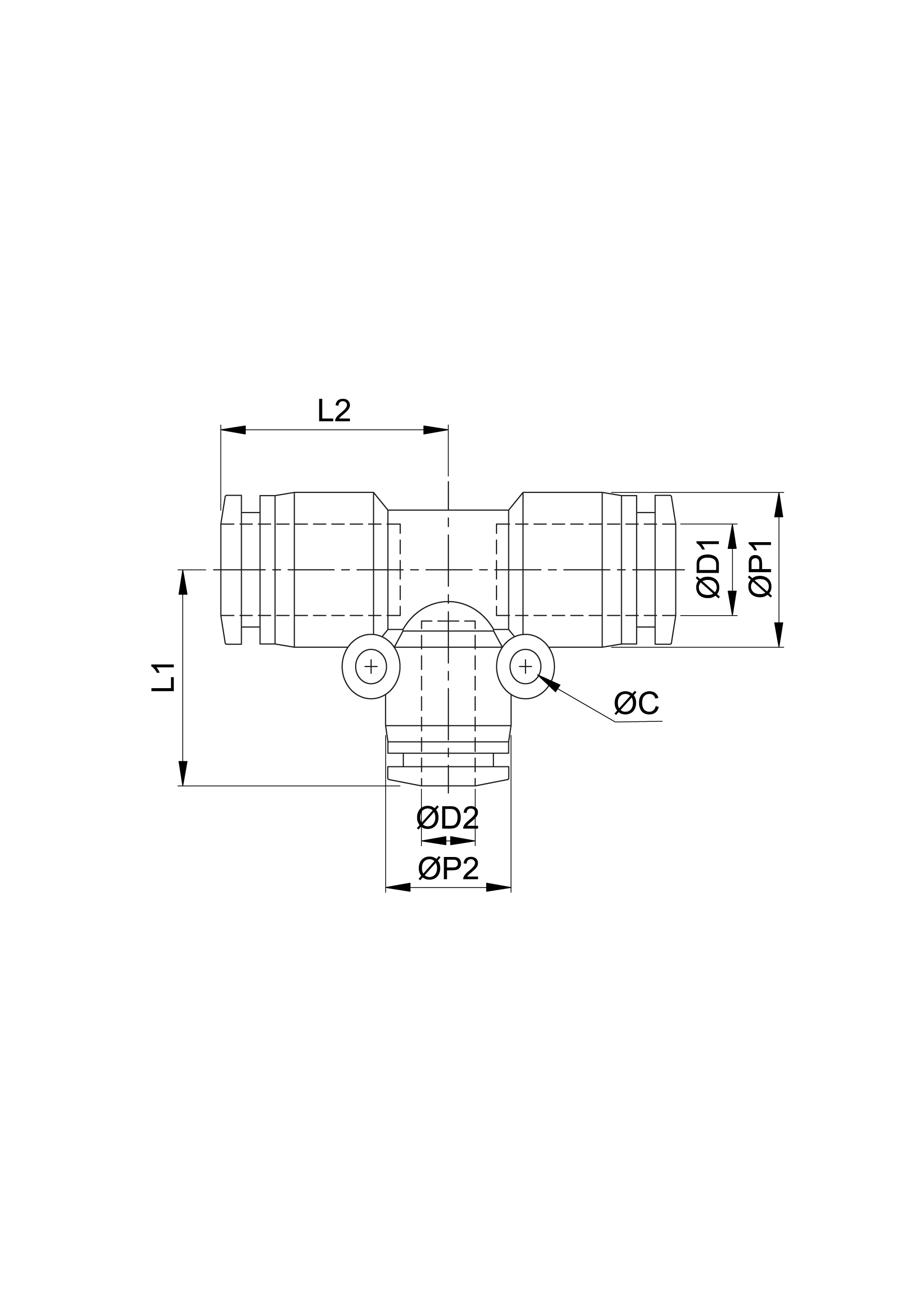

| Type number | ØD1 | ØD2 | ØP1 | ØP2 | ØC | L1 | L2 |
|---|---|---|---|---|---|---|---|
| TQ-PCT-4 | 4 | 4 | 11,1 | 11,1 | 3,2 | 18,5 | 18,5 |
| TQ-PCT-6 | 6 | 6 | 13 | 13 | 3,2 | 19,3 | 19,3 |
| TQ-PCT-8 | 8 | 8 | 15,1 | 15,1 | 3,2 | 22,7 | 22,7 |
| TQ-PCT-8-6 | 8 | 6 | 15,1 | 13 | 3,2 | 20,3 | 22,8 |
| TQ-PCT-10 | 10 | 10 | 18,8 | 18,8 | 4,2 | 27 | 27 |
| TQ-PCT-10-8 | 10 | 8 | 18,8 | 15,1 | 4,2 | 24,8 | 27 |
| TQ-PCT-12 | 12 | 12 | 21,5 | 21,5 | 4,3 | 29,6 | 29,6 |
| TQ-PCT-14 | 14 | 14 | 23,2 | 23,2 | 5,1 | 31,7 | 31,7 |
| Kivitel: | összekötő |
|---|---|
| Material: | POM |
| Material body: | POM |
| Material retaining ring: | Nickel-plated brass |
| Material seals: | NBR |
| Material support ring: | POM |
| Medium: | Compressed air, vacuum |
| O-gyűrű anyaga: | NBR |
| Port size | A: | Ø4 |
| Port size | B: | Ø4 |
| Pressure range: | -0,95…16 bar |
| Rögzítő karom anyaga: | Stainless steel |
| Temperature range: | -20°C…+80°C |
