VRL 100
Rod lock for ISO 15552 cylinder
You can add comments on the request summary page.
VRL 100
Rod lock for ISO 15552 cylinder
Please register here to access downloads for data sheets and 3D models.
| Product number | Cylinder | extended piston rod | Diameter | Options |
|---|

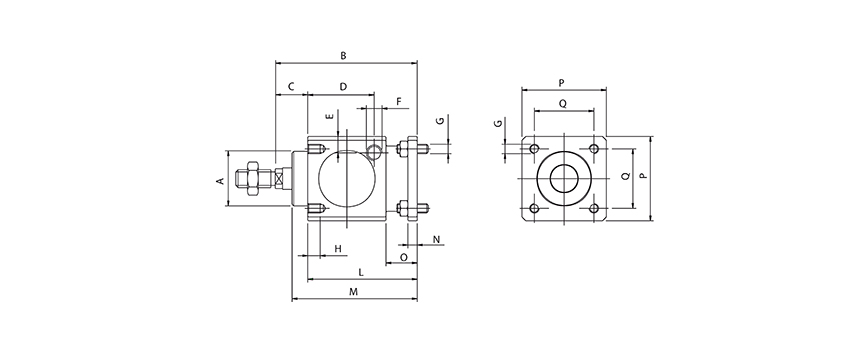

| Type number | Diameter | A | B | C | D | E | F | G | H | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRL 32 | Ø 32 | 30 | 86 | 26 | 33,25 | 9 | G 1/8" | M 6 | 8 | 60 | 67,5 | 6 | 20 | 47 | 32,5 |
| VRL 40 | Ø 40 | 34,5 | 100 | 30 | 42,5 | 9 | G 1/8" | M 6 | 8 | 70 | 80 | 6 | 20 | 54 | 38 |
| VRL 50 | Ø 50 | 40 | 127 | 37 | 58 | 12,5 | G 1/8" | M 8 | 12 | 90 | 100 | 8 | 24 | 65 | 46,5 |
| VRL 63 | Ø 63 | 45 | 127 | 37 | 59 | 17,5 | G 1/8" | M 8 | 12 | 90 | 100 | 8 | 24 | 75 | 56,5 |
| VRL 80 | Ø 80 | 45 | 156 | 46 | 69 | 17,5 | G 1/4" | M 10 | 16 | 110 | 120 | 12 | 32 | 95 | 72 |
| VRL 100 | Ø 100 | 55 | 161 | 51 | 69 | 20 | G 1/4" | M 10 | 16 | 110 | 120 | 12 | 32 | 114 | 89 |
| VRL 125 | Ø 125 | 60 | 205 | 65 | 84,5 | 19 | G 1/4" | M 12 | 20 | 140 | 156 | 20 | 45 | 138 | 110 |
| Cylinder | extended piston rod: | 110 mm |
|---|---|
| Diameter: | Ø100 |
| Material: | Aluminum |
| Port size / Connection: | G 1/4" |
| Temperature range: | -20°C…+80°C |
