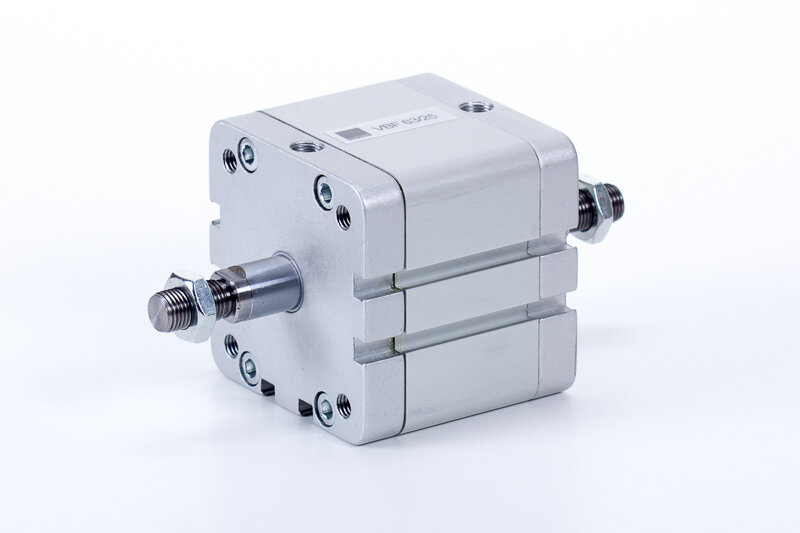

Compact cylinder - ISO 21287 - double acting - magnetic piston - male thread - through piston rod
Custom cylinder length (optional)
The value must be between 5 and 500.

You can add comments on the request summary page.

ZBF 80/30
Compact cylinder - ISO 21287 - double acting - magnetic piston - male thread - through piston rod
Please register here to access downloads for data sheets and 3D models.

Product number Diameter Material seals Piston rod diameter Piston rod thread Port size / Connection Stroke Options
ZBF 20/5 Ø20 NBR, PU (max. 80°C) Ø12 M8 - male thread M5 5 mm
ZBF 20/10 Ø20 NBR, PU (max. 80°C) Ø10 M8 - male thread M5 10 mm
ZBF 20/15 Ø20 NBR, PU (max. 80°C) NPT 1/4" M8 - male thread M5 15 mm
ZBF 20/20 Ø20 NBR, PU (max. 80°C) NPT 1/2" M8 - male thread M5 20 mm
ZBF 20/25 Ø20 NBR, PU (max. 80°C) No M8 - male thread M5 25 mm
ZBF 20/30 Ø20 NBR, PU (max. 80°C) NAMUR-interface M8 - male thread M5 30 mm
ZBF 20/40 Ø20 NBR, PU (max. 80°C) Solenoid / electrical connection M8 - male thread M5 40 mm
ZBF 20/50 Ø20 NBR, PU (max. 80°C) M7 M8 - male thread M5 50 mm
ZBF 20/60 Ø20 NBR, PU (max. 80°C) M6 M8 - male thread M5 60 mm
ZBF 20/80 Ø20 NBR, PU (max. 80°C) M5 M8 - male thread M5 80 mm
ZBF 20/100 Ø20 NBR, PU (max. 80°C) M3 M8 - male thread M5 100 mm
ZBF 20/125 Ø20 NBR, PU (max. 80°C) M12x1,5 M8 - male thread M5 125 mm
ZBF 20/160 Ø20 NBR, PU (max. 80°C) M12x1,25 M8 - male thread M5 160 mm
ZBF 20/200 Ø20 NBR, PU (max. 80°C) M12x1 M8 - male thread M5 200 mm
ZBF 20/250 Ø20 NBR, PU (max. 80°C) G 8/6" M8 - male thread M5 250 mm
ZBF 20/320 Ø20 NBR, PU (max. 80°C) G 6/4" M8 - male thread M5 320 mm
ZBF 20/400 Ø20 NBR, PU (max. 80°C) G 4" M8 - male thread M5 400 mm
ZBF 25/5 Ø25 NBR, PU (max. 80°C) G 3/8" M8 - male thread M5 5 mm
ZBF 25/10 Ø25 NBR, PU (max. 80°C) G 3/4" M8 - male thread M5 10 mm
ZBF 25/15 Ø25 NBR, PU (max. 80°C) G 3" M8 - male thread M5 15 mm
ZBF 25/20 Ø25 NBR, PU (max. 80°C) G 2.1/2" M8 - male thread M5 20 mm
ZBF 25/25 Ø25 NBR, PU (max. 80°C) G 2" M8 - male thread M5 25 mm
ZBF 25/30 Ø25 NBR, PU (max. 80°C) G 12/10" M8 - male thread M5 30 mm
ZBF 25/40 Ø25 NBR, PU (max. 80°C) G 10/8" M8 - male thread M5 40 mm
ZBF 25/50 Ø25 NBR, PU (max. 80°C) G 1/8" M8 - male thread M5 50 mm
ZBF 25/60 Ø25 NBR, PU (max. 80°C) G 1/4" | male thread M8 - male thread M5 60 mm
ZBF 25/80 Ø25 NBR, PU (max. 80°C) G 1/4" | female thread M8 - male thread M5 80 mm
ZBF 25/100 Ø25 NBR, PU (max. 80°C) G 1/4" M8 - male thread M5 100 mm
ZBF 25/125 Ø25 NBR, PU (max. 80°C) G 1/2" M8 - male thread M5 125 mm
ZBF 25/160 Ø25 NBR, PU (max. 80°C) G 1.1/4" M8 - male thread M5 160 mm
ZBF 25/200 Ø25 NBR, PU (max. 80°C) G 1.1/2" M8 - male thread M5 200 mm
ZBF 25/250 Ø25 NBR, PU (max. 80°C) G 1" M8 - male thread M5 250 mm
ZBF 25/320 Ø25 NBR, PU (max. 80°C) D8 M8 - male thread M5 320 mm
ZBF 25/400 Ø25 NBR, PU (max. 80°C) D6 M8 - male thread M5 400 mm
ZBF 32/5 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 5 mm
ZBF 32/10 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 10 mm
ZBF 32/15 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 15 mm
ZBF 32/20 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 20 mm
ZBF 32/25 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 25 mm
ZBF 32/30 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 30 mm
ZBF 32/40 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 40 mm
ZBF 32/50 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 50 mm
ZBF 32/60 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 60 mm
ZBF 32/80 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 80 mm
ZBF 32/100 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 100 mm
ZBF 32/125 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 125 mm
ZBF 32/160 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 160 mm
ZBF 32/200 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 200 mm
ZBF 32/250 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 250 mm
ZBF 32/320 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 320 mm
ZBF 32/400 Ø32 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 400 mm
ZBF 40/5 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 5 mm
ZBF 40/10 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 10 mm
ZBF 40/15 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 15 mm
ZBF 40/20 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 20 mm
ZBF 40/25 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 25 mm
ZBF 40/30 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 30 mm
ZBF 40/40 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 40 mm
ZBF 40/50 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 50 mm
ZBF 40/60 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 60 mm
ZBF 40/80 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 80 mm
ZBF 40/100 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 100 mm
ZBF 40/125 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 125 mm
ZBF 40/160 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 160 mm
ZBF 40/200 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 200 mm
ZBF 40/250 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 250 mm
ZBF 40/320 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 320 mm
ZBF 40/400 Ø40 NBR, PU (max. 80°C) Ø12 mm M10 x 1,25 - male thread G 1/8" 400 mm
ZBF 50/5 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 5 mm
ZBF 50/10 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 10 mm
ZBF 50/15 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 15 mm
ZBF 50/20 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 20 mm
ZBF 50/25 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 25 mm
ZBF 50/30 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 30 mm
ZBF 50/40 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 40 mm
ZBF 50/50 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 50 mm
ZBF 50/60 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 60 mm
ZBF 50/80 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 80 mm
ZBF 50/100 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 100 mm
ZBF 50/125 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 125 mm
ZBF 50/160 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 160 mm
ZBF 50/200 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 200 mm
ZBF 50/250 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 250 mm
ZBF 50/320 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 320 mm
ZBF 50/400 Ø50 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 400 mm
ZBF 63/5 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 5 mm
ZBF 63/10 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 10 mm
ZBF 63/15 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 15 mm
ZBF 63/20 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 20 mm
ZBF 63/25 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 25 mm
ZBF 63/30 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 30 mm
ZBF 63/40 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 40 mm
ZBF 63/50 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 50 mm
ZBF 63/60 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 60 mm
ZBF 63/80 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 80 mm
ZBF 63/100 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 100 mm
ZBF 63/125 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 125 mm
ZBF 63/160 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 160 mm
ZBF 63/200 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 200 mm
ZBF 63/250 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 250 mm
ZBF 63/320 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 320 mm
ZBF 63/400 Ø63 NBR, PU (max. 80°C) Ø16 mm M12 x 1,25 - male thread G 1/8" 400 mm
ZBF 80/5 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 5 mm
ZBF 80/10 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 10 mm
ZBF 80/15 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 15 mm
ZBF 80/20 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 20 mm
ZBF 80/25 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 25 mm
ZBF 80/40 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 40 mm
ZBF 80/50 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 50 mm
ZBF 80/60 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 60 mm
ZBF 80/80 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 80 mm
ZBF 80/100 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 100 mm
ZBF 80/125 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 125 mm
ZBF 80/160 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 160 mm
ZBF 80/200 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 200 mm
ZBF 80/250 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 250 mm
ZBF 80/320 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 320 mm
ZBF 80/400 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 400 mm
ZBF 80/500 Ø80 NBR, PU (max. 80°C) Ø20 mm M16 x 1,5 - male thread G 1/8" 500 mm
ZBF 100/5 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 5 mm
ZBF 100/10 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 10 mm
ZBF 100/15 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 15 mm
ZBF 100/20 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 20 mm
ZBF 100/25 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 25 mm
ZBF 100/30 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 30 mm
ZBF 100/40 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 40 mm
ZBF 100/50 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 50 mm
ZBF 100/60 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 60 mm
ZBF 100/80 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 80 mm
ZBF 100/100 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 100 mm
ZBF 100/125 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 125 mm
ZBF 100/160 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 160 mm
ZBF 100/200 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 200 mm
ZBF 100/250 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 250 mm
ZBF 100/320 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 320 mm
ZBF 100/400 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 400 mm
ZBF 100/500 Ø100 NBR, PU (max. 80°C) Ø25 mm M16 x 1,5 - male thread G 1/8" 500 mm
Type number ZBF 20/… ZBF 25/… ZBF 32/… ZBF 40/… ZBF 50/… ZBF 63/… ZBF 80/… ZBF 100/…
Ø Ø20 Ø25 Ø32 Ø40 Ø50 Ø63 Ø80 Ø100
A 16 16 19 19 22 22 28 28
AF 15 15 15 15 17 17 20 22
B2 5 5 6 6 7 7 8 8
Ø D 10 10 12 12 16 16 20 25
Ø D5 7,5 7,5 9 9 10,5 10,5 13,5 13,5
E 36 40 49 54,5 65,5 77 95,5 113,5
EE M5 M5 G1/8 G1/8 G1/8 G1/8 G1/8 G1/8
I9 - - 10,8 12,8 21 25,8 30 50
I10 - - - - - 13 18 35
K 8 8 10 10 13 13 17 22
KF M6 M6 M8 M8 M10 M10 M12 M12
KK M8 M8 M10x1,25 M10x1,25 M12x1,25 M12x1,25 M16x1,5 M16x1,5
LA 4,5 4,5 5 5 5 5 3 3
PL 7,5 7,5 7,5 8 8 7,5 8 10,5
RT M5 M5 M6 M6 M8 M8 M10 M10
SW2 13 13 17 17 19 19 24 24
TG 22 26 32,5 38 46,5 56,5 72 89
WH 6,5 6 6,5 7 8 8 9 10
WH+löket 6,5 6 6,5 7 8 8 9 10
ZA+löket 37 39 44 45 45 49 54 67
ZB+löket 43,5 45 50,5 52 53 57 63 77
Cushioning: Built-in cushioning rings
Diameter: Ø80
ISO standard: ISO 21287
Material body: Anodized aluminum
Material guide bushing: Sintered bronze
Material heads: Anodized aluminum
Material piston: Aluminum
Material piston rod: Chromed steel (CK45)
Material seals: NBR, PU (max. 80°C)
Medium: Compressed air
Operating pressure: 1…10 bar
Piston rod diameter: Ø20 mm
Piston rod thread: M16 x 1,5 - male thread
Piston type: Magnetic
Port size / Connection: G 1/8"
Stroke: 30 mm
Temperature range: -20°C…+80°C
Thrust force (6 bar): 2685 N
Traction force (6 bar): 2685 N
Ways: Double acting
This website uses cookies to ensure the best experience possible. More information...
